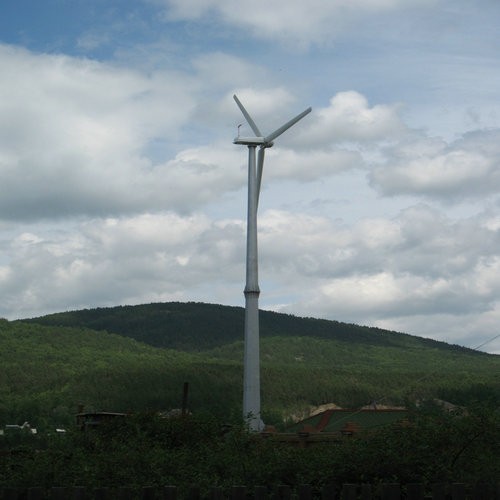

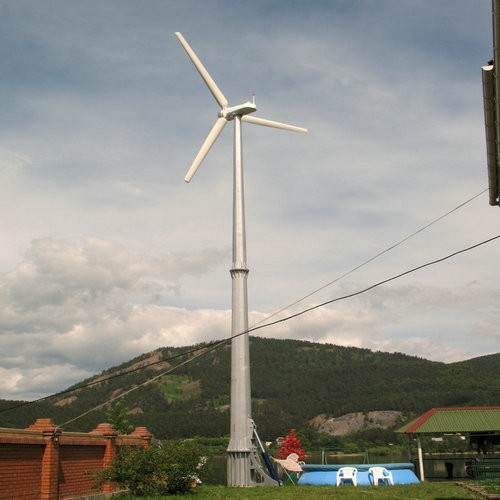

10KW wind generator in Russia






Detailed Product Description


home wind turbine
Siemens PLC Control system
Touch screen for remote control
Low noise with SKF bearings
Smart yawshaft

Hummer 10000w Home Wind Turbine which features high efficiency and low rated wind speed introducing several patented technologies and some special materials.

Off grid style H8.0-10000W is matched with wind-solar hybrid inverter controller, which can connect solar panel within 3000w simultaneously.

Inside , the wind-solar hybrid inverter system adopts CPU smart control . Control circuit is simplified , made of reliable and sensititive to outside environment change .

It is also designed with protection against overload ,over current and over heat . When there is no load for a long time , CPU will shut down the inverter to protect the battery .

User can check various working data on the LCD screen in front panel , or view through computer which can be linked to the inverter through RS485 port by side . We supply standard software for computer use .

Grid tied style of H8.0-10000W is matched with special HUMMER grid-tied inverter system ,which deisgned for state grid connection .

The special grid-tied inverter system adopts IGBT modules to greatly enhance sytem efficiency ,and introducing automatic optimization technology of MPPT to improve the system generation capacity .


Application of Model H8.0-10000W

It can drive air-condition (8-10 horsepower), 3kw water pump or other resistive appliances (≤10KW)

Well used in:

 Housing and factory and farm
 Telecommunication Station
 TV Transfer Station
 Monitoring Station (military, hydrology, observatory)
 Water-pumping Station
 shipping


Main technical data

H8.0-10KW wind generator in Russia Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф8.0 m / 26.2 ft
Swept Area 50.27 m2 / 541.1 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 10 kW @ 11m/s / 24.6 mph
Maximum Output Power 11 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 240 Vdc
System Output Voltage 110/220/380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 200 r/min
Working Wind Speed 3-25 m/s / 6.7-82.5  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 287 kg / 632.7 lbs
Generator Efficiency >0.85
Wind Energy Utilizing Ratio 0.40 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing & Hydraulic Braking
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts
