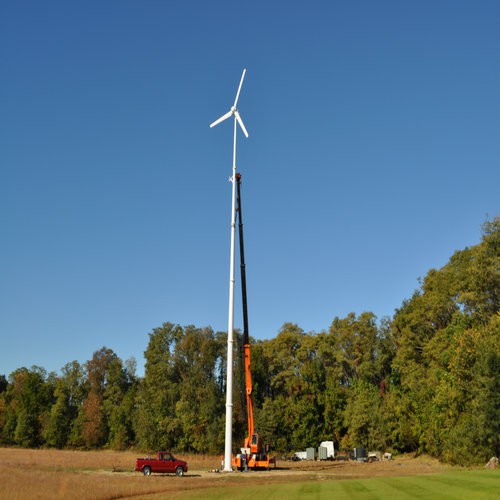

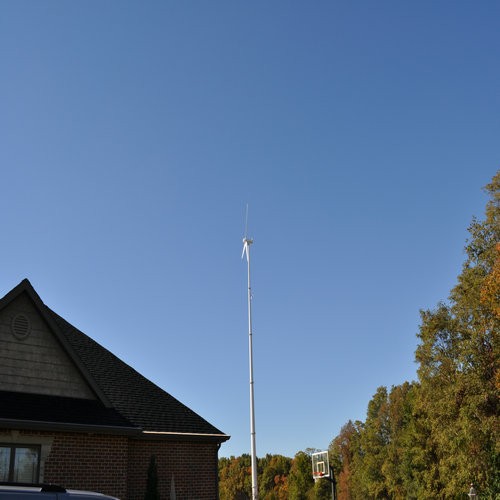

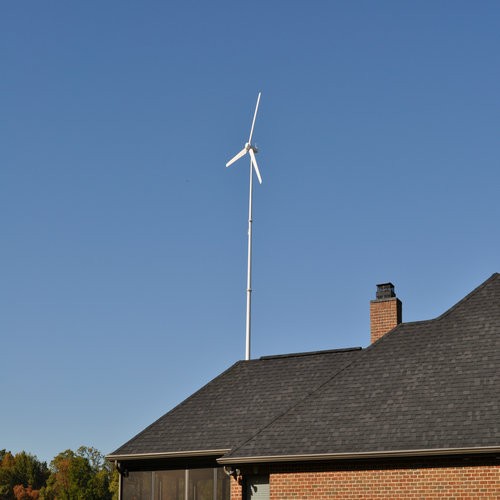

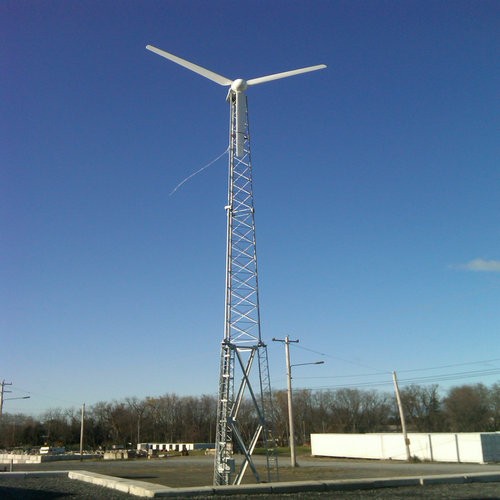

10KW wind generator in the USA






1.CE proved+7 patents
2.high efficiency+small size
3.NO MOQ+wholesale price
4.professional factory

It can drive air-condition (8-10 horsepower), 3kw water pump or other resistive appliances (≤10KW)

Well used in:

 Housing and factory and farm

 Telecommunication Station

 TV Transfer Station

 Monitoring Station (military, hydrology, observatory)

 Water-pumping Station

 shipping



Main technical data

H8.0-10KW nd generator in the USA Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф8.0 m / 26.2 ft
Swept Area 50.27 m2 / 541.1 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 10 kW @ 11m/s / 24.6 mph
Maximum Output Power 11 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 240 Vdc
System Output Voltage 110/220/380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 200 r/min
Working Wind Speed 3-25 m/s / 6.7-82.5  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 287 kg / 632.7 lbs
Generator Efficiency >0.85
Wind Energy Utilizing Ratio 0.40 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing & Hydraulic Braking
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts
