H3.1-1KW Wind Solar Diesel Hybrid Wind Turbine

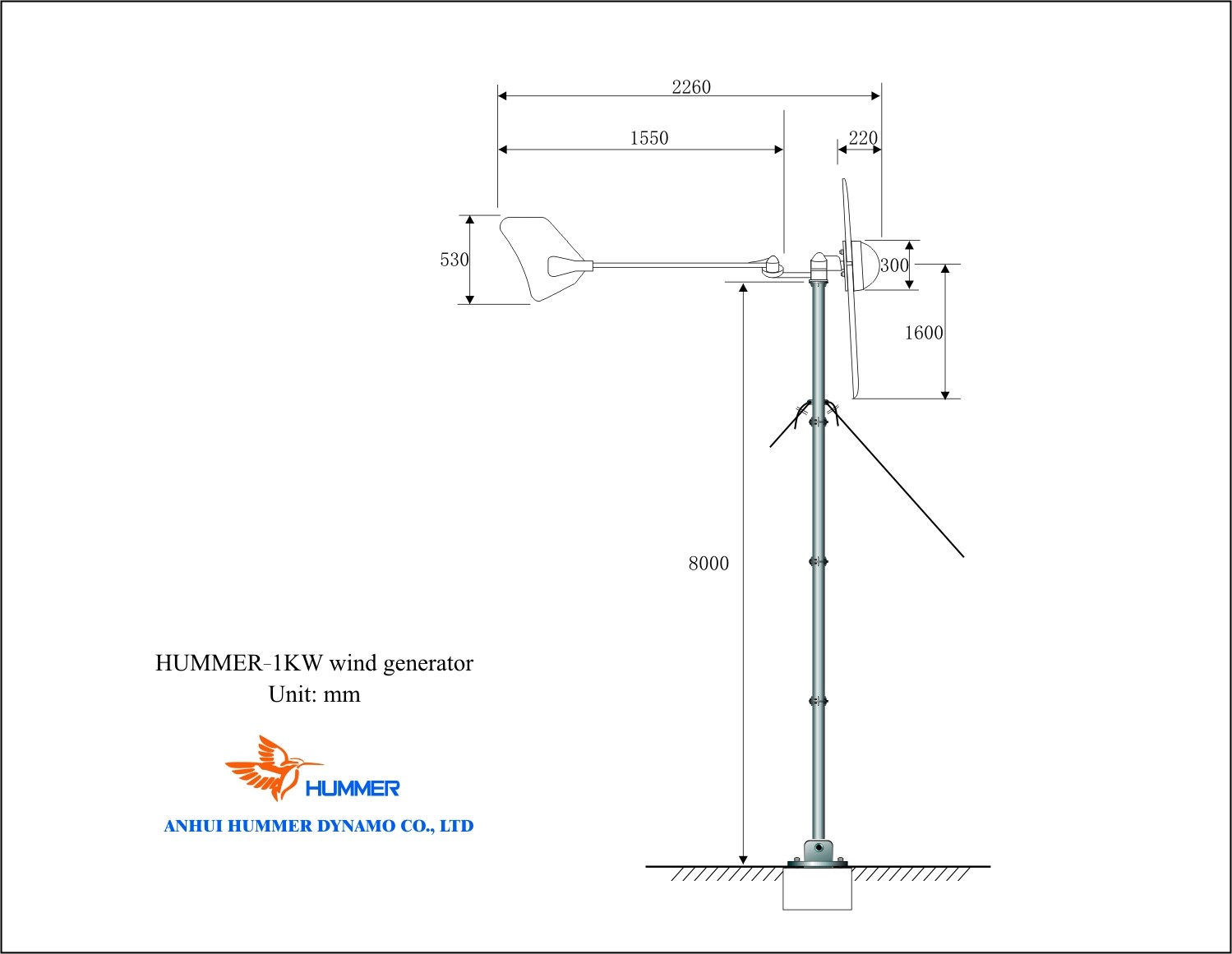

H3.1-1KW Wind Solar Diesel Hybrid Wind Turbine Structure
Hummer manufactures and offers advanced H3.1-1KW Wind Solar Diesel Hybrid Wind
Turbine specifically designed for residential houses; farms; telecommunication stations;
commercial wind farms; water-pumping, etc. The electricity from wind generator and solar
panels charges the batteries after being rectified and powers the loads through the inverter.
Diesel generator serves as standby when wind and solar energy can meet the power demands.
Features with wind turbine and solar panels as the main power supply with diesel generator
as standby to guarantee the steady power demands. Our products are third party certified
and during the past 10 years, H3.1-1KW Off Grid Wind Turbine have been exported to 91
countries and areas, such as the USA, Canada, Australia, Germany, the UK, Italy, France,
India, Spain etc. For more information on 1KW Wind Turbine such as users manuals,
data sheet, PDF documents, certifications please email us sales@allwindturbine.com
or call 086 551 65314300

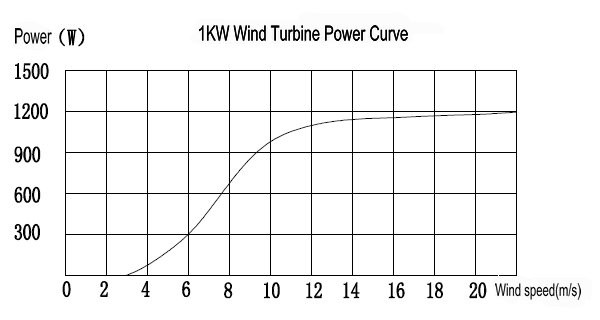

H3.1-1KW Wind Solar Diesel Hybrid Wind Turbine curve
H3.1-1000W Wind Solar Diesel Hybrid Wind Turbine Specifications | |
Configuration | 3 Blades, Horizontal axis, Upwind |
Rotor Diameter | Ф3.1 m / 10.2 ft |
Swept Area | 7.55 m2 / 81.3 ft2 |
Direction of Rotation | Clockwise looking upwind |
Blade Material | Fiberglass reinforced composite |
Rated Power | 1 kW @ 10m/s / 22.4 mph |
Maximum Output Power | 1.2 kW @ 20m/s / 44.7 mph |
Battery Bank Voltage | 60 Vdc |
System Output Voltage | 110/220 Vac |
Cut-in Wind Speed | 3 m/s / 6.7 mph |
Rated rotating rate | 500 r/min |
Working Wind Speed | 3-25 m/s / 6.7-82.1 mph |
Survival Wind Speed | 50 m/s / 164 mph |
Alternator | Permanent magnet alternator, SCF technology |
Alternator Weight | 15 kg / 33.1 lbs |
Generator Efficiency | >0.80 |
Wind Energy Utilizing Ratio | 0.45 Cp |
Energy monitoring & User control | LED display |
Gearbox | None, Direct drive with front generator design |
Over Speed Regulation | Passive furling tail design |
Shutting Down Method | Manual & Automatic electromagnetism Braking |
Warranty | 2 years for generator and 1 year for other parts |

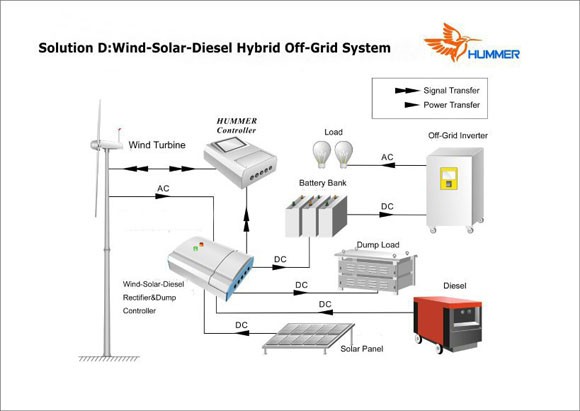

How H3.1-1KW Wind Solar Diesel Hybrid Wind Turbine works
