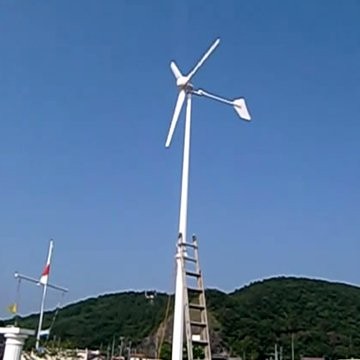

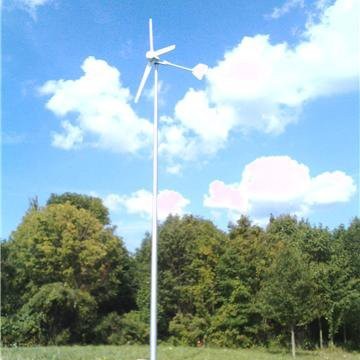

1kw household wind power generayor






Detailed Product Description


1kw household wind power generator
1. higher generating efficiency above 0.8
2. lower start up wind speed 3m/s
3.skf bearing

1kw household wind power generator

technical parameters;

H3.1-1000W household wind power generayor Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф3.1 m / 10.2 ft
Swept Area 7.55 m2 / 81.3 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 1 kW @ 10m/s / 22.4 mph
Maximum Output Power 1.2 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 60 Vdc
System Output Voltage 110/220 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 500 r/min
Working Wind Speed 3-25 m/s / 6.7-82.1  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 15 kg / 33.1 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.45 Cp
Energy monitoring & User control LED display
Gearbox None, Direct drive with front generator design
Over Speed Regulation Passive furling tail design
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts

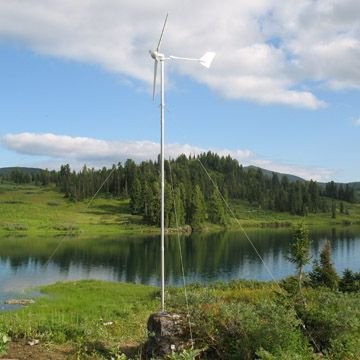

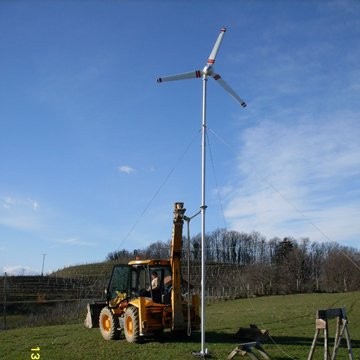

1. guys tower height 8m by standard.

2. generator extremely light and small, low in sound, swift in startup, quick in heat dissipation,high in efficiency.

3. yaw shaft with the slip ring toensure the rotation at 360 degree.

4. tail pole and tail wing galvanised steel anti corrosion and salt proof, acid proof, UV proof.

5. 3-1 inverter integrating the functions of battery charging, controlling, inverting, diversion lights included, a spare terminal of solar panel on the back.
