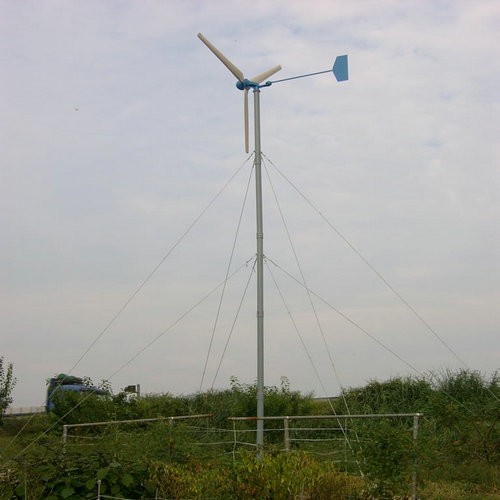

2000w wind generator in Germany




Detailed Product Description


High efficiency 2kw wind generator
1.Smaller.lighter.lower noise
2.Higher efficiency
3.Smart system
4.SCF technology&2 SKF b

 High efficiency 2kw wind generator



application of Model H9.0-20000W

It can drive air-condition ( ≤20 horsepower), 6kw water pump or other resistive appliances (≤20KW).

Well used in:

Housing and factory and farm

Telecommunication Station

TV Transfer Station

Monitoring Station (military, hydrology, observatory)

Water-pumping Station

shipping






H3.8-2000W wind generator in Germany Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф3.8 m / 12.5 ft
Swept Area 11.35 m2 / 122.2 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 2 kW @ 11m/s / 24.6 mph
Maximum Output Power 2.2 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 120 Vdc
System Output Voltage 110/220 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 450 r/min
Working Wind Speed 3-25 m/s / 6.7-82.2  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 25 kg / 55.1 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.45 Cp
Energy monitoring & User control LED display
Gearbox None, Direct drive with front generator design
Over Speed Regulation Passive furling tail design
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts



 1. generator located inside nose cone to radiate heat easily, with generator itself extremely light and small, low in noise.

2. yaw shaft with the slip ring to ensure the rotation at 360 circulation.



3. tail ple and tial wing connecting with the body of wind turbine through SKF ball bearing, more endurable and strong.



4. tower made of galvanised steel anti acid proof and salt proof.



5. 3 in 1 inverter integrating the functions of battery charging, inverting, controlling. diversion lights  included, a pare terminal of solar panel on the back.
