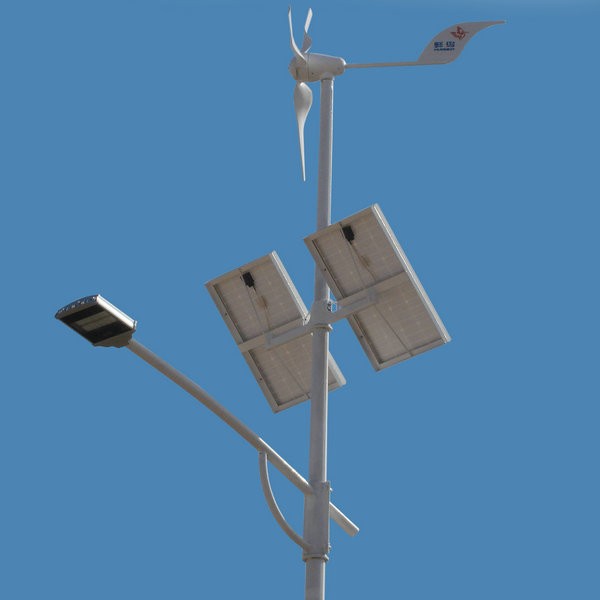

400W Wind Solar Hybrid Street Light






400W Wind Solar Hybrid Street Light

400W Wind Solar Hybrid Street Light

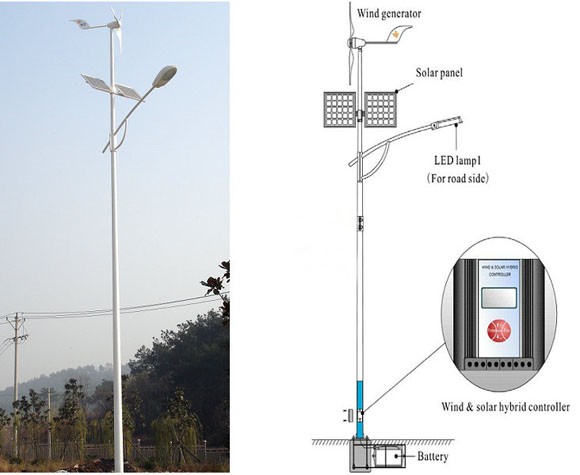

400W Wind Solar Hybrid Street Light Structure

400W Wind Solar Hybrid Street Light Structure

400W Wind Solar Hybrid Street Light Structure

Hummer manufactures and offers advanced 400W Wind Solar Hybrid Street Light widely

used in roads ,landscape,residential lighting and surveillance,communications base stations,

ships and other fields. Novel & Unique appearance, can offer special design based on clients'

demands.With small , light and compact structure ,easy to instal. No security risks, the system

is ultra-low-voltage products ,operating safe and reliable. Our products are third party certified

and during the past 10 years, Hummer wind generator have been exported to 91 countries and

areas, such as the USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain etc. For

more information on Wind Solar Hybrid Street Light  such as users manuals, data sheet, PDF

documents, certifications please email us sales@allwindturbine.com or call 086 551 65314300

400W Wind Solar Hybrid Street Light curve

400W Wind Solar Hybrid Street Light curve

400W Wind Solar Hybrid Street Light specifications

Configuration

3 Blades, Horizontal axis, upwind

Rotor Diameter

Ф1.25m

Rated Power

400W at 11m/s

Maximum Output Power

600W at 15m/s

Battery Bank Voltage

12 Vdc

System Output Voltage

12 Vac

Cut-in Wind Vpeed

2.5 m/s

Working Wind Speed

3-25 m/s

Survival Wind Speed

50 m/s

Generator Efficiency

>0.80

Wind Energy Utilizing Ratio

0.40 Cp

Alternator

Permanent magnet alternator, SCF technology

Alternator Weight (kg)

5.5 kg

Gearbox

None, Direct drive, front generator design

Blade Material

Fiberglass reinforced composite

Over Speed Regulation

Passive furling tail design

Shutting Down Method

Manual & Automatic electromagnetism Braking
