50kw wind generator



  • Products Visitors:6856
  • Product Name:50kw wind generator
  • Package:38.532 CBM, 10 Packages
  • Size:18m free standing tower
  • Model:H12.0-50kw



50KW wind generator
1.SCF generator technology
2.Siemens PLC control system
3.high efficiency.
50kw Wind Generator

H12.0-50KW nd generator Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф12.0 m / 39.4 ft
Swept Area 113.10 m2 / 1217.4 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 50 kW @ 12m/s / 26.8 mph
Maximum Output Power 54 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 400 Vdc
System Output Voltage 380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 140 r/min
Working Wind Speed 3-25 m/s / 6.7-82.8  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 1237 kg / 2727.1 lbs
Generator Efficiency >0.92
Wind Energy Utilizing Ratio 0.42 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing & Hydraulic Braking
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts



1. generator extremely small and light, low in sound, swift in startup, quick in dissipation, high in efficiency.

2. yaw shaft with the slip ring to ensure the rotation at 360 degree.

3. tower made of galvanised steel anti acid, salt proof, UV- proof.

4. wind vane and anemometer indicating wind direction and measuring wind speed, transmitting wind signal to PLC controller.

5. Siemens PLC controller receiving wind signal and operation signal , quick reaction and intelligent control.

6. brake block assembled in the flange of wind generator for hydraulic braking.

7.off grid inverter adopting SPWM technology, amorphous transformer and high frequency breaker, with hight converting efficiency, outputting stable frequency , stable voltage, filtering out noise,low distortion of pure sine wave.

8. grid feed inverter adopting MPPT and IGBT technologies, with high power generating capacity, wide  AC voltage range.

9. dumping load metail dumping box, heat dissipation by air convection, without the fan and the controlling box.

10. rectifier rectifying and controlling the dumping load.

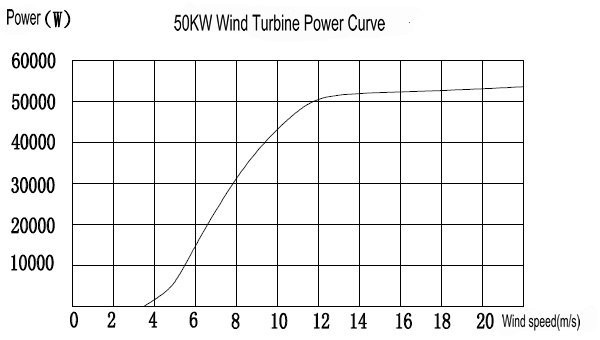

50kw Wind Generator Power Curve

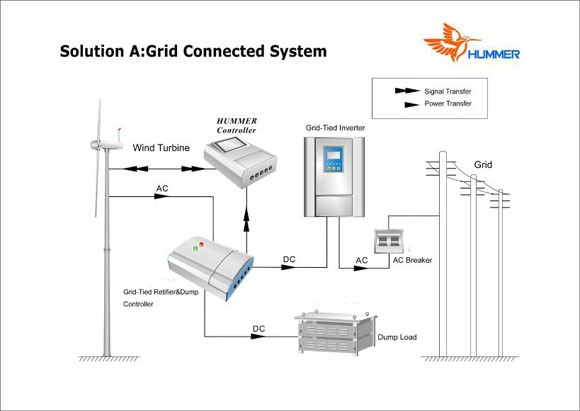

50KW Wind Generator Grid Connected System
