5KW Horizontal Wind Generator

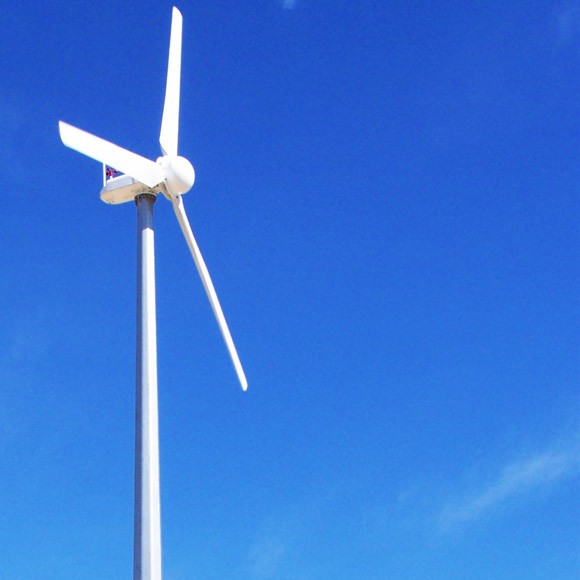

Hummer 5KW Horizontal Wind Generator

Hummer 5KW Horizontal Wind Generator

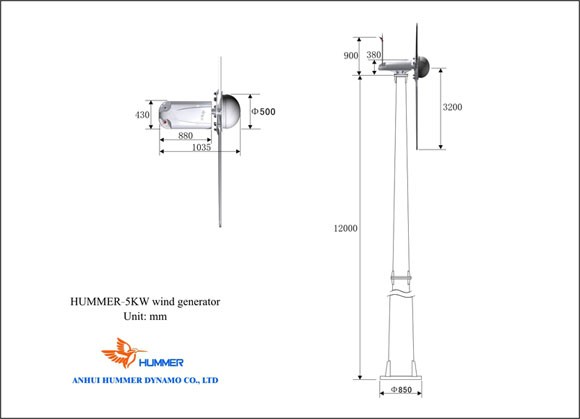

Hummer 5KW Horizontal Wind Generator Structure

Hummer 5KW Horizontal Wind Generator Structure

Hummer 5KW Horizontal Wind Generator Structure

Hummer manufactures and offers advanced 5KW Horizontal Wind Generator specifically

designed for residential houses; farms; telecommunication stations; commercial wind farms;

water-pumping, etc. Our products are third party certified and during the past 10 years, 5KW

Horizontal Wind Generator have been exportedto 91 countries and areas, such as the USA,

Canada, Australia, Germany, the UK, Italy, France, India, Spain etc. For more information on

5KW Horizontal Wind Generator such as users manuals, data sheet, PDF documents,

certifications please email us sales@allwindturbine.com or call 086 551 65314300

Hummer 5KW Horizontal Wind Generator curve

Hummer 5KW Horizontal Wind Generator curve

H6.4-5KW Horizontal Wind Generator specifications

Configuration

3 Blades, Horizontal axis, upwind

Rotor Diameter

Ф6.4m

Rated Power

5KW at 10m/s

Maximum Output Power

7.5KW at 14.5m/s

Battery Bank Voltage

240 Vdc

System Output Voltage

110/220 Vac

Cut-in Wind Vpeed

2.5 m/s

Working Wind Speed

3-25 m/s

Survival Wind Speed

50 m/s

Generator Efficiency

>0.8

Wind Energy Utilizing Ratio

0.40 Cp

Energy Monitoring & User Control

Siemens PLC controller with touch screen

Alternator

Permanent magnet alternator, SCF technology

Alternator Weight (kg)

147 kg

Gearbox

None, Direct drive, front generator design

Blade Material

Fiberglass reinforced composite

Over Speed Regulation

Auto Yawing

Shutting Down Method

Manual & Automatic electromagnetism Braking

How 5KW Horizontal Wind Generator works

How 5KW Horizontal Wind Generator works
