5KW Micro Wind Turbine



  • Products Visitors:2706
  • Product Name:5KW Micro Wind Turbine
  • Package:3.119 CBM, 9 Packages
  • Size:12m free standing tower
  • Model:H6.4-5KW



Hummer 5KW Micro Wind Turbine

Hummer 5KW Micro Wind Turbine

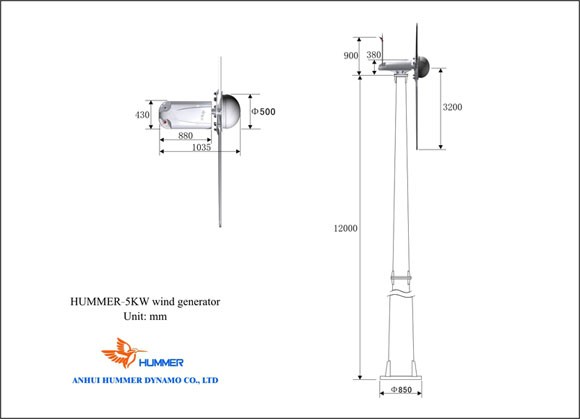

Hummer 5KW Micro Wind Turbine Structure

Hummer 5KW Micro Wind Turbine Structure

Hummer 5KW Micro Wind Turbine Structure

Hummer manufactures and offers advanced 5KW Micro Wind Turbine specifically designed

for residential houses; farms; telecommunication stations; commercial wind farms; water-pumping,

etc. Our products are third party certified and during the past 10 years, 5KW Micro Wind

Turbine have been exported to 91 countries and areas, such as the USA, Canada, Australia,

Germany, the UK, Italy, France, India, Spain etc. For more information on 5KW Micro Wind

Turbine such as users manuals, data sheet, PDF documents, certifications please email

us sales@allwindturbine.com or call 086 551 65314300

Hummer 5KW Micro Wind Turbine curve

5KW Micro Wind Turbine

H6.4-5KW Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф6.4 m / 20.1 ft
Swept Area 32.17 m2 / 346.3 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 5 kW @ 12m/s / 26.8 mph
Maximum Output Power 5.6 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 240 Vdc
System Output Voltage 110/220/380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 240 r/min
Working Wind Speed 3-25 m/s / 6.7-82.4  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 147 kg / 324.1 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.40 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts


How 5KW Micro Wind Turbine works

How 5KW Micro Wind Turbine works
