5KW Residential Wind Turbine



  • Products Visitors:2574
  • Product Name:5KW Residential Wind Turbine
  • Size:12m free standing tower
  • Model:H6.4-5KW
  • Package:3.119 CBM, 9 Packages



Hummer 5KW Residential Wind Turbine

Hummer 5KW Residential Wind Turbine

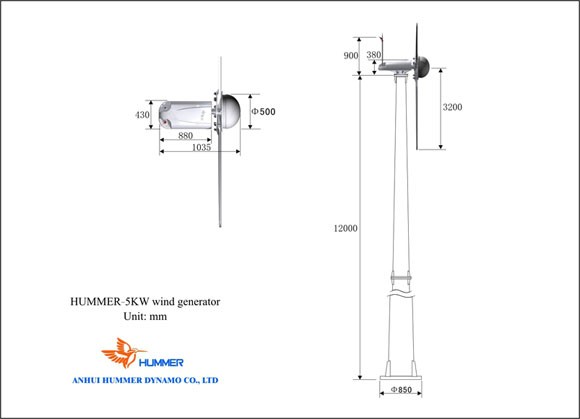

Hummer 5KW Residential Wind Turbine Structure

Hummer 5KW Residential Wind Turbine Structure

Hummer 5KW Residential Wind Turbine Structure

Hummer manufactures and offers advanced 5KW Residential Wind Turbine specifically

designed for residential houses; farms; telecommunication stations; commercial wind farms;

water-pumping, etc. Our products are third party certified and during the past 10 years, 5KW

Residential Wind Turbine have been exported to 91 countries and areas, such as the USA,

Canada, Australia, Germany, the UK, Italy, France, India, Spain etc. For more information on

5KW Residential Wind Turbine such as users manuals, data sheet, PDF,documents,

certifications please email us sales@allwindturbine.com or call 086 551 65314300

Hummer 5KW Residential Wind Turbine curve

5KW Residential Wind Turbine
H6.4-5KW Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф6.4 m / 20.1 ft
Swept Area 32.17 m2 / 346.3 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 5 kW @ 12m/s / 26.8 mph
Maximum Output Power 5.6 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 240 Vdc
System Output Voltage 110/220/380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 240 r/min
Working Wind Speed 3-25 m/s / 6.7-82.4  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 147 kg / 324.1 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.40 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts





How 5KW Residential Wind Turbine works

How 5KW Residential Wind Turbine works
