Hummer 5KW Roof Wind Turbine

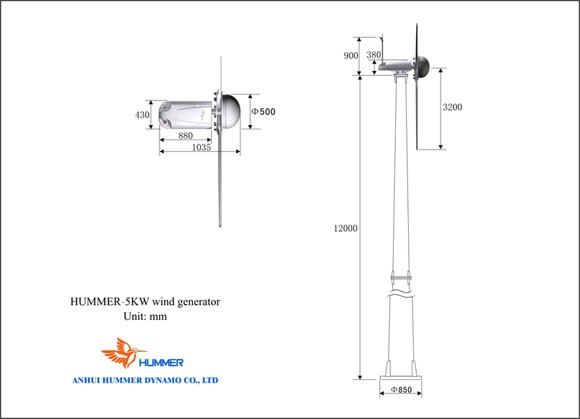

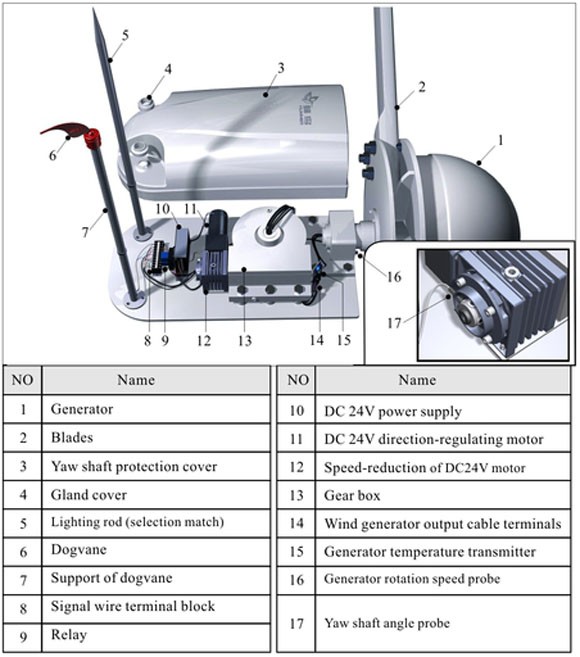

Hummer 5KW Roof Wind Turbine Structure
Hummer manufactures and offers advanced 5KW Roof Wind Turbine specifically designed
for residential houses; farms; telecommunication stations; commercial wind farms; water-pumping,
etc. Our products are third party certified and during the past 10 years, 5KW Roof Wind
Turbine have been exported to 91 countries and areas, such as the USA, Canada, Australia,
Germany, the UK, Italy, France, India, Spain etc. For more information on 5KW Roof Wind
Turbine such as users manuals, data sheet, PDF documents, certifications please email
us sales@allwindturbine.com or call 086 551 65314300
Hummer 5KW Roof Wind Turbine curve
| H6.4-5KW Specifications | |
| Configuration | 3 Blades, Horizontal axis, Upwind |
| Rotor Diameter | Ф6.4 m / 20.1 ft |
| Swept Area | 32.17 m2 / 346.3 ft2 |
| Direction of Rotation | Clockwise looking upwind |
| Blade Material | Fiberglass reinforced composite |
| Rated Power | 5 kW @ 12m/s / 26.8 mph |
| Maximum Output Power | 5.6 kW @ 20m/s / 44.7 mph |
| Battery Bank Voltage | 240 Vdc |
| System Output Voltage | 110/220/380 Vac |
| Cut-in Wind Speed | 3 m/s / 6.7 mph |
| Rated rotating rate | 240 r/min |
| Working Wind Speed | 3-25 m/s / 6.7-82.4 mph |
| Survival Wind Speed | 50 m/s / 164 mph |
| Alternator | Permanent magnet alternator, SCF technology |
| Alternator Weight | 147 kg / 324.1 lbs |
| Generator Efficiency | >0.80 |
| Wind Energy Utilizing Ratio | 0.40 Cp |
| Energy monitoring & User control | Siemens PLC controller with touch screen |
| Gearbox | None, Direct drive with front generator design |
| Over Speed Regulation | Auto Yawing |
| Shutting Down Method | Manual & Automatic electromagnetism Braking |
| Warranty | 2 years for generator and 1 year for other parts |
| Shutting Down Method | Manual & Automatic electromagnetism Braking & Hydraulic Braking |
| Warranty | 2 years for generator and 1 year for other parts |

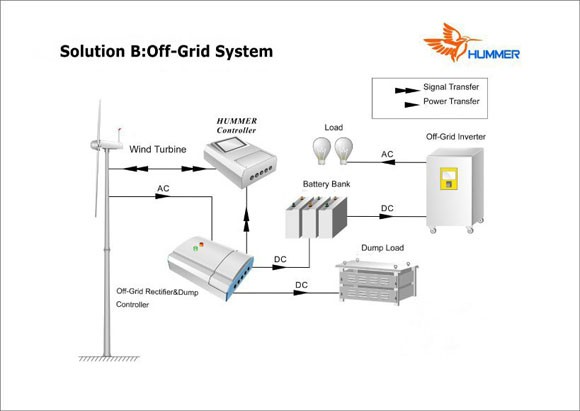

How 5KW Roof Wind Turbine works
