5KW Wind Generator System



  • Products Visitors:2503
  • Product Name:5KW Wind Generator System
  • Package:3.119 CBM, 9 Packages
  • Size:12m guyed tower
  • Model:H6.4-5KW



Hummer 5KW Wind Generator System

Hummer 5KW Wind Generator System

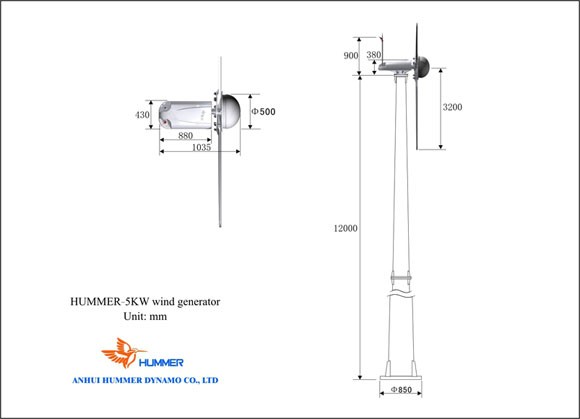

5KW Wind Generator System Structure

5KW Wind Generator System Structure

5KW Wind Generator System Structure

Hummer manufactures and offers advanced 5KW Wind Generator System specifically

designed for residential houses; farms; telecommunication stations; commercial wind farms;

water-pumping, etc. Our products are third party certified and during the past 10 years,

Hummer 5KW Wind Generator System have been exported to 91 countries and areas, such

as the USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain etc. For more

information on 5KW Wind Generator System such as users manuals, data sheet, PDF

documents, certifications please email us sales@allwindturbine.com or call 086 551 65314300

Hummer 5KW Wind Generator System curve

5KW Wind Generator System

H6.4-5KW Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф6.4 m / 20.1 ft
Swept Area 32.17 m2 / 346.3 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 5 kW @ 12m/s / 26.8 mph
Maximum Output Power 5.6 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 240 Vdc
System Output Voltage 110/220/380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 240 r/min
Working Wind Speed 3-25 m/s / 6.7-82.4  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 147 kg / 324.1 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.40 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts


How 5KW Wind Generator System works

How 5KW Wind Generator System works
