5kw wind generator



  • Products Visitors:4764
  • Product Name:5kw wind generator
  • Package:3.119 CBM, 9 Packages
  • Size:12m free standing tower
  • Model:H6.4-5kw



1.Features

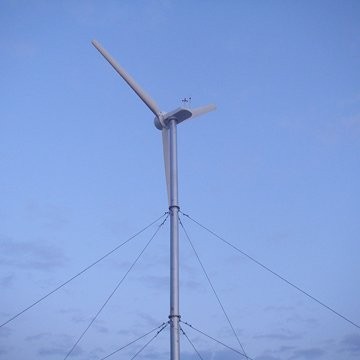

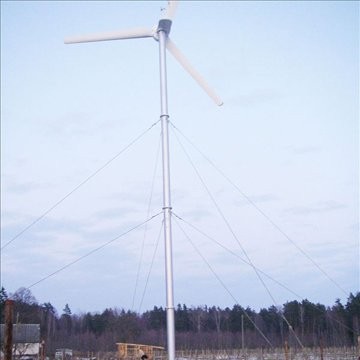

A.Guys tower height 12m by standard.

B.Generator extremely light and small, low in sound, swift in startup, quick in heat dissipation,high in efficiency.

C.Yaw shaft with the slip ring toensure the rotation at 360 degree.

D. Siemens PLC controller receiving wind signal and operation signal , quick in reaction, reliable and intelligent.

D. Dogvane and anemometer indicating wind direction and measuring wind speed, transmitting wind signal to PLC controller.

E. Rectifier rectifying and controlling the dumping load.

F. Dumping load made of metal dumping box, heat dissipation by air convection, without the fan and the controlling box.

G.Off grid inverter adopting SPWM technology, amorphous transformer and high frequency breaker,with high converting efficiency, outputting stable frequency, stable voltage, low distortion of  pure sine wave.




2.Parameters

H6.4-5KW wind generator Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф6.4 m / 20.1 ft
Swept Area 32.17 m2 / 346.3 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 5 kW @ 12m/s / 26.8 mph
Maximum Output Power 5.6 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 240 Vdc
System Output Voltage 110/220/380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 240 r/min
Working Wind Speed 3-25 m/s / 6.7-82.4  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 147 kg / 324.1 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.40 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts



3.Curve

5KW Wind Turbine Power Curve
