H10.0-30KW Wind Turbine



  • Products Visitors:4149
  • Product Name:H10.0-30KW Wind Turbine
  • Package:19.346 CBM, 10 Packages
  • Size:18m hydraulic tower
  • Model:H10.0-30KW



H10.0-30KW Wind Turbine

H10.0-30KW Wind Turbine

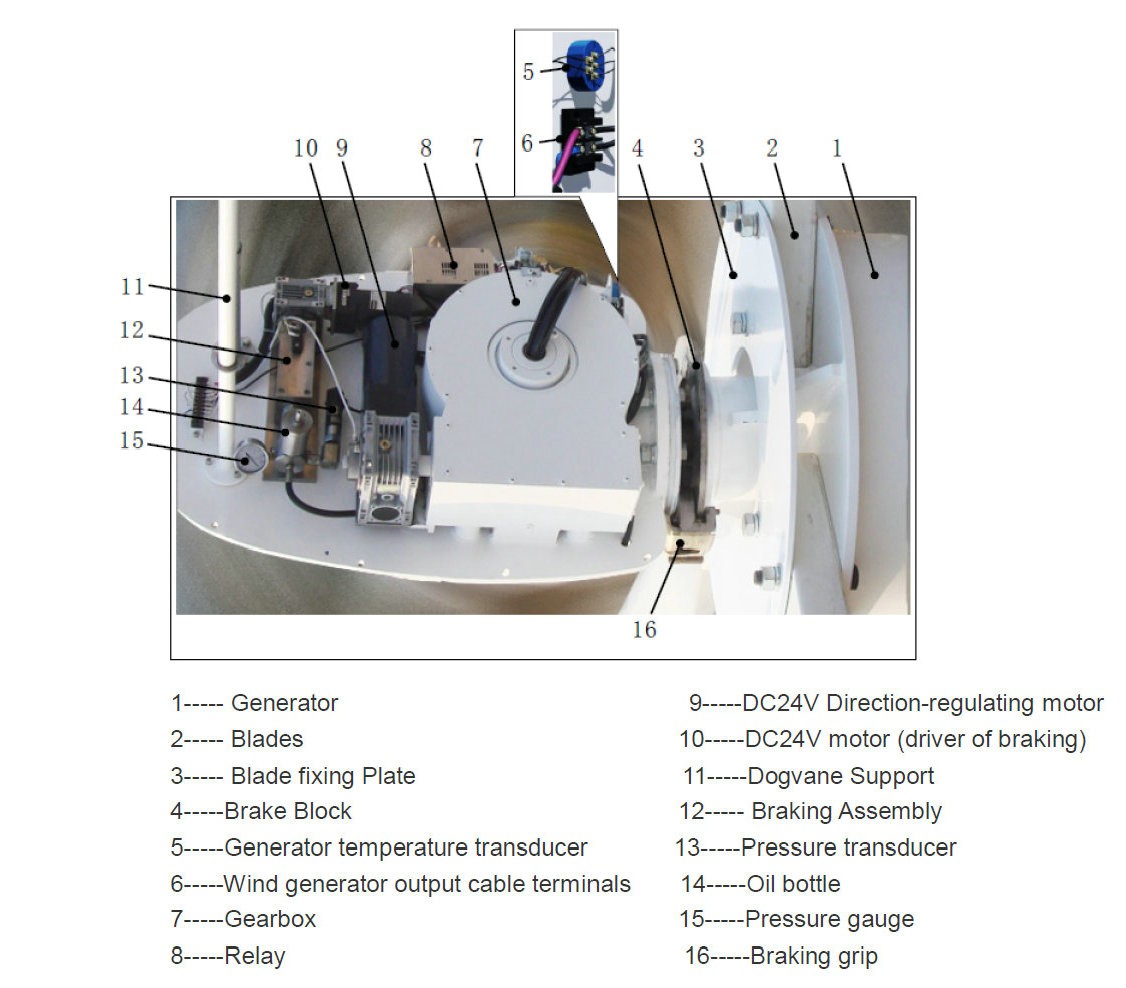

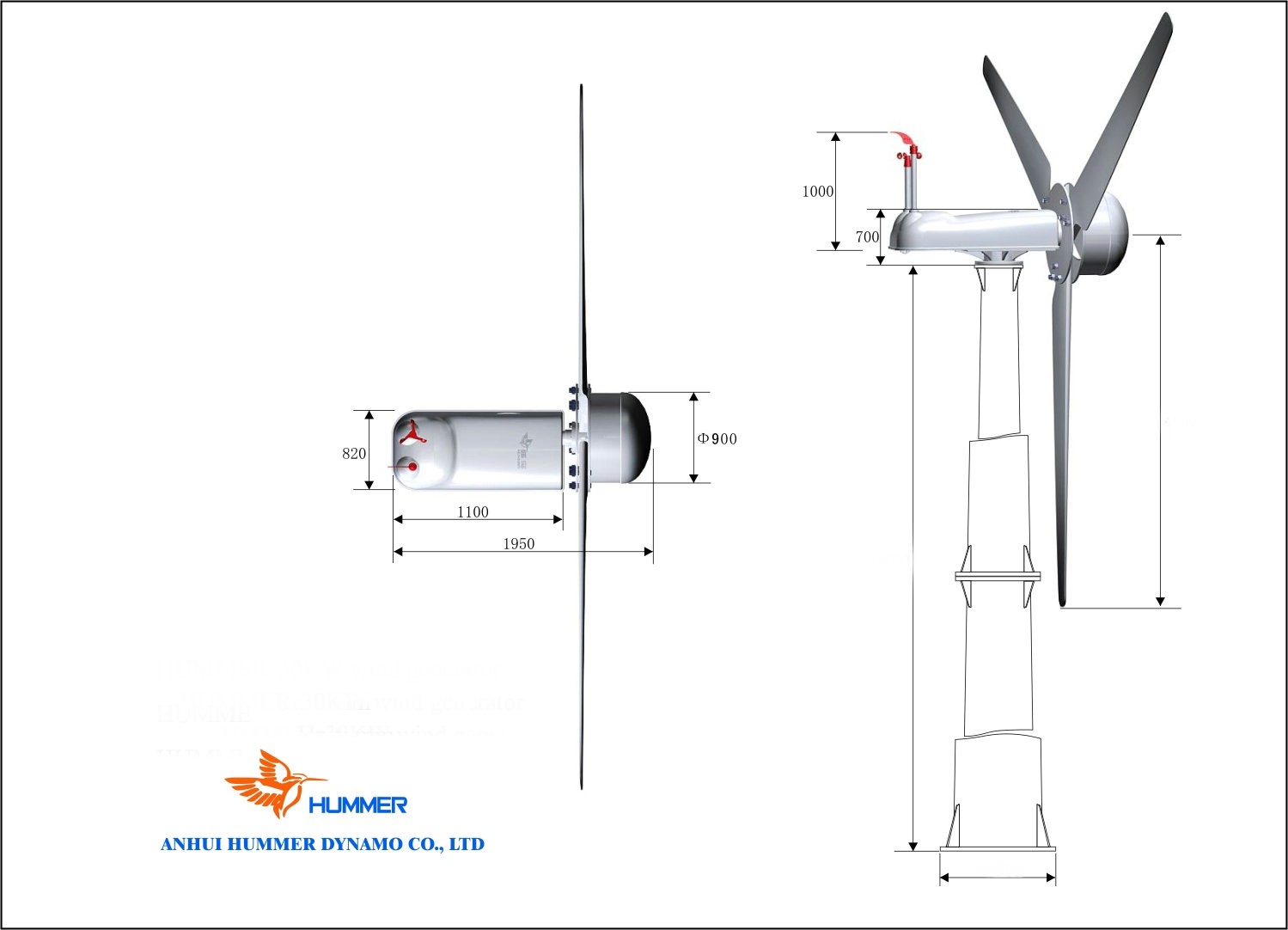

H10.0-30KW Wind Turbine Structure

H10.0-30KW Wind Turbine Structure

H10.0-30KW Wind Turbine Structure

Hummer manufactures and offers advanced H10.0-30KW Wind Turbine specifically designed

for residential houses; farms; telecommunication stations; commercial wind farms;

water-pumping, etc. 30kw wind turbine generator adopting SCF supercritical technology and two

SKF bearings. Siemens PLC controller with human-oriented touch screen, which can realize

real-time monitoring. Optional off grid and grid connected system, optional single phase and

three phase output, and optional hydraulic braking system as well as hydraulic towers.

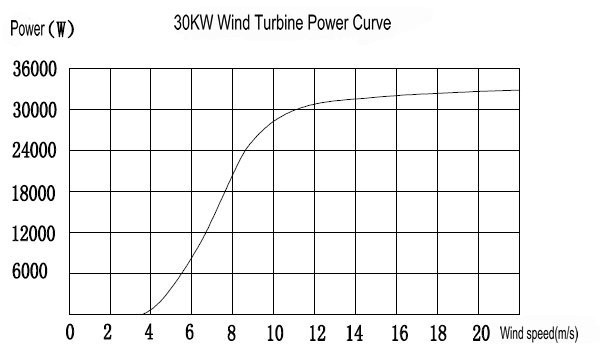

H10.0-30KW Wind Turbine curve

H10.0-30KW Wind Turbine curve



H10.0-30KW Wind Turbine Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф10.0 m / 32.8 ft
Swept Area 78.54 m2 / 845.4 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 30 kW @ 11m/s / 24.6 mph
Maximum Output Power 33 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 360 Vdc
System Output Voltage 380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 160 r/min
Working Wind Speed 3-25 m/s / 6.7-82.7  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 824 kg / 1816.6 lbs
Generator Efficiency >0.92
Wind Energy Utilizing Ratio 0.42 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing & Hydraulic Braking
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts
