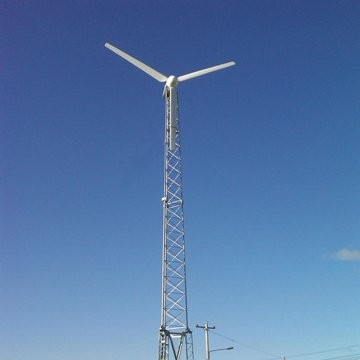

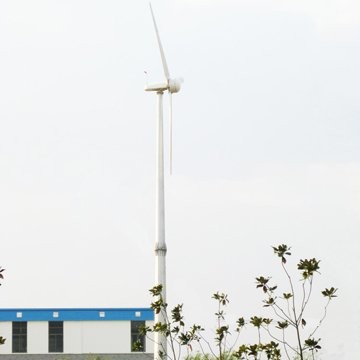

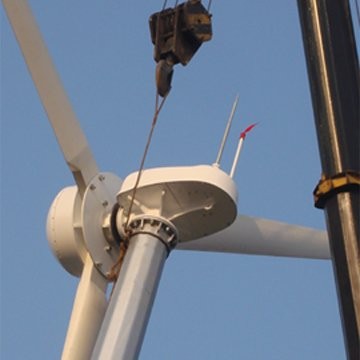

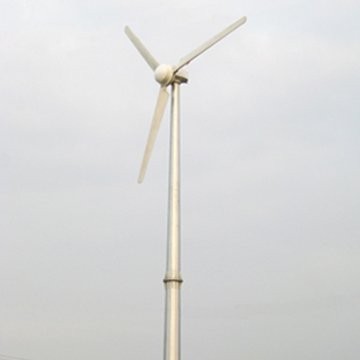

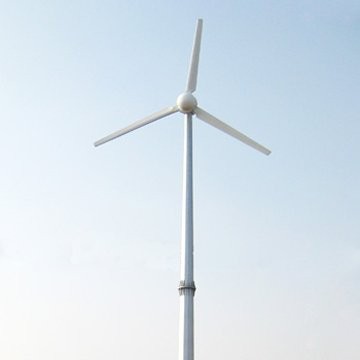

H10.0-30kw grid-tied wind turbine system






Detailed Product Description



home wind generator
1.CE proved+7 patents
2.high efficiency+small size
3.NO MOQ+wholesale price
4.professional factory


The unique feature of 30KW wind turbine

1.        SCF (Supercritical Generator Technology) generator technology as core, Feature is extremely light &small&fasting&stable with higher power efficiency .

2.        Adopt SKF (Svenska Kullager Fabriken) bearings, which have a 15 years life span without maintenance.

3.        Smart Intelligent yaw shaft system has designed with sensor to detect speed&Rpm&angle &tempreture of genratror,speed&direction of wind etc.

4.        PLC controller system(Smart&Intelligent) with touch screen, which can automatically seek wind direction, drifts off the blades from strong wind direction to protect the system and constantly monitor generator working status, Monitoring rotation speed, generator temperature, wind speed and direction etc. All data will be transmitted to control center and easy view control with the touch screen.

5.        One international patents,Six National patents and ensure the perfect performance.




Main technical parameter of H10.0-30kw grid-tied system

H10.0-30KW grid-tied wind turbine system Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф10.0 m / 32.8 ft
Swept Area 78.54 m2 / 845.4 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 30 kW @ 11m/s / 24.6 mph
Maximum Output Power 33 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 360 Vdc
System Output Voltage 380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 160 r/min
Working Wind Speed 3-25 m/s / 6.7-82.7  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 824 kg / 1816.6 lbs
Generator Efficiency >0.92
Wind Energy Utilizing Ratio 0.42 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing & Hydraulic Braking
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts



Grid tired Connected System
