H12.0-50kw wind-solar hybrid system


Detailed Product Description

wind power generator
1.CE proved+7patents
2.high efficiency+small size
3.NO MOQ+wholesale price
4.professional factory

Efficient Generator

Hummer generator is one of the most advanced generators in the world. Made of refined permanent magnetic material, special copper alloy, aviation aluminum alloy and stainless steel, it is highly efficient in power .Due to its smallness, it is able to be placed inside the nose cone to reduce air resistance and increase efficiency.
Due to its advanced technologies, refined materials and unique design, H12.0-50000W wind turbine's wind energy utilization factor is as high as 0.42, while generator efficiency is >0.92.

Smart Control

H12.0-50000W wind turbine is controlled by a comprehensive smart system. Through our years of monitoring on wind turbine operation, we successfully develop an automatic control system for small and medium scaled wind turbines.
This smart system is able to automatically seek wind direction and constantly monitor: generator working status,rotation speed,generator temperature, wind speed and direction etc. All data will be transmitted to control center .
When abnormal situation takes place ,our control center will instruct wind turbine to deflect from wind direction. After problem is released wind turbinewill turn to face the wind direction again and resume generation.
H12.0-50000W wind turbine system, both off grid and grid tied are available.

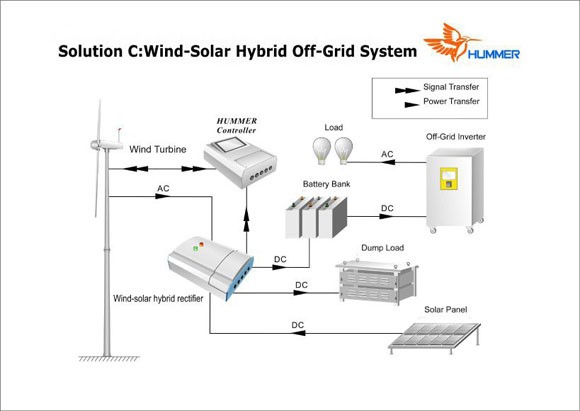

H12.0-50kw wind-solar hybrid system


Application of of H12.0-50kw wind-solar hybrid system
It can drive air-condition ( <=50 horsepower), 10kw water pump or other resistive  appliances (<=50KW).
Well used in:
 Housing, factory and farm
 Telecommunication Station
 Monitoring Station (military, hydrology, observatory)
 Water-pumping Station

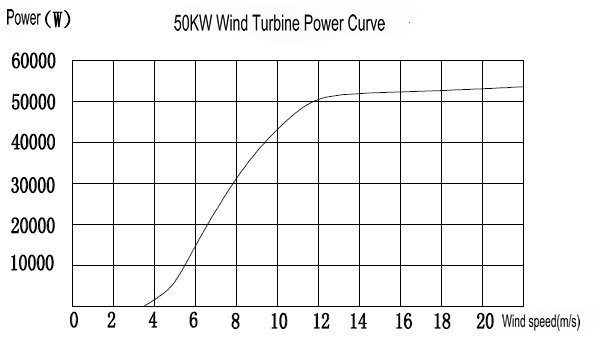

 50KW Wind Turbine Power Curve

Main technical parameter

H12.0-50KW wind-solar hybrid system Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф12.0 m / 39.4 ft
Swept Area 113.10 m2 / 1217.4 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 50 kW @ 12m/s / 26.8 mph
Maximum Output Power 54 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 400 Vdc
System Output Voltage 380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 140 r/min
Working Wind Speed 3-25 m/s / 6.7-82.8  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 1237 kg / 2727.1 lbs
Generator Efficiency >0.92
Wind Energy Utilizing Ratio 0.42 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing & Hydraulic Braking
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts

Main technical parameter:
