H19.2-100KW Grid Tied Wind Turbine






H19.2-100KW Grid Tied Wind Turbine

H19.2-100KW Grid Tied Wind Turbine

H19.2-100KW Grid Tied Wind Turbine Structure

H19.2-100KW Grid Tied Wind Turbine Structure

Hummer manufactures and offers advanced H19.2-100KW Grid Tied Wind Turbine

specifically designed for residential houses; farms; telecommunication stations; commercial

wind farms; water-pumping, etc. The electricity from 100kw grid connected wind generator

outputs to the grid-tied inverter after being rectified. When the input DC voltage reaches up

to the start-up voltage,the inverter will merge into state grid. Our products are third party

certified and during the past 10 years, Hummer Wind Turbine Generator have been exported

to 91 countries and areas, such as the USA, Canada, Australia, Germany, the UK, Italy,

France, India, Spain etc. For more information on 100KW Wind Turbine such as users

manuals, data sheet, PDF documents, certifications please email us

sales@allwindturbine.com or call 086 551 65314300

H19.2-100KW Grid Tied Wind Turbine curve

H19.2-100KW Grid Tied Wind Turbine curve

H20.8-100KW Grid Tied Wind Turbine Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф20.8 m / 68.2 ft
Swept Area 339.80 m2 / 3657.6 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 100 kW @ 12m/s / 26.8 mph
Maximum Output Power 106 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 460 Vdc
System Output Voltage 380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 100 r/min
Working Wind Speed 3-25 m/s / 6.7-82.10  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 2196 kg / 4620.9 lbs
Generator Efficiency >0.92
Wind Energy Utilizing Ratio 0.45 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing & Hydraulic Braking
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts

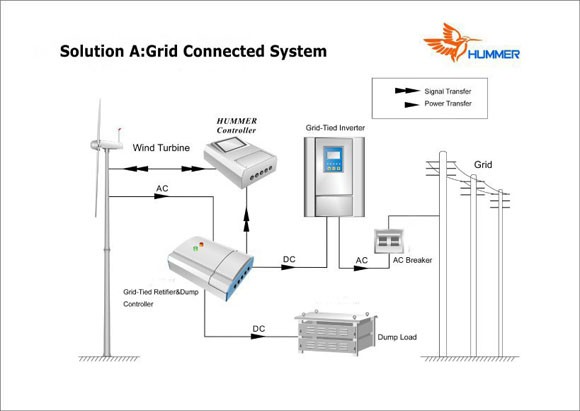

How H19.2-100KW Grid Tied Wind Turbine works

How H19.2-100KW Grid Tied Wind Turbine works
