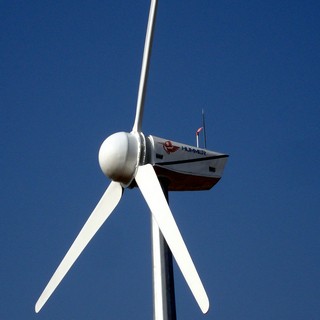

H19.2-100kw wind generator with higher output






H19.2-100KW wind power, a typical HUMMER smart Wind turbine with a series of high-end technologies and refined material, is excellent in generation, stable in output and reliable in practice.

Efficient Generator

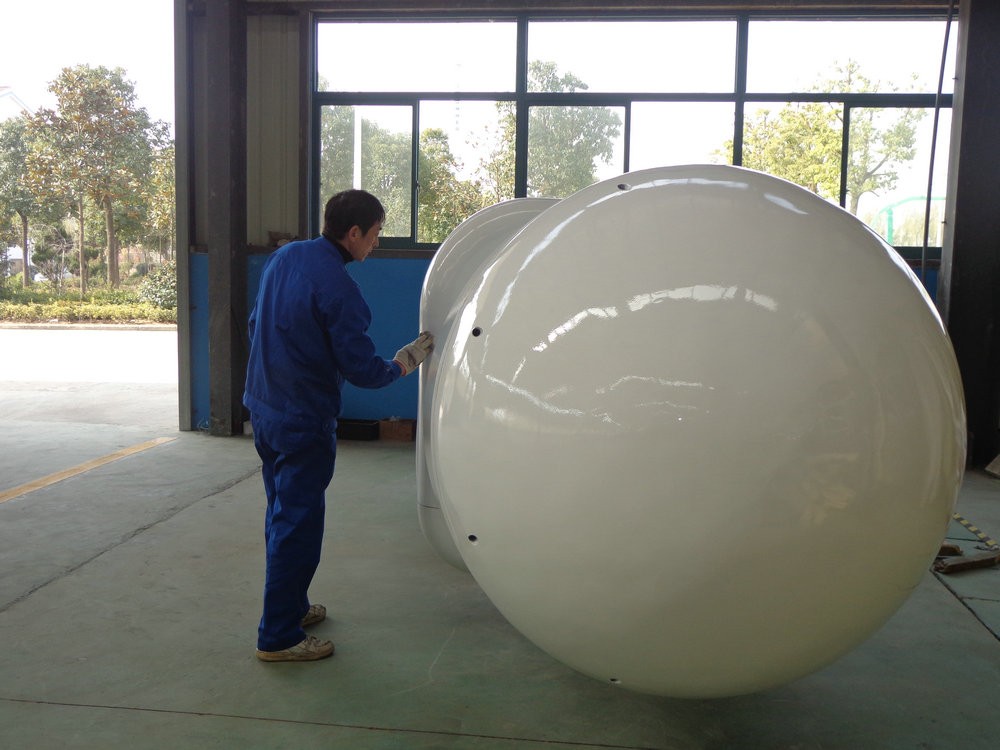

Hummer generator is one of the most advanced generators in the world. Made of refined permanent magnetic material, special copper alloy, aviation aluminum alloy and stainless steel, it is highly efficient in generating power. Due to its smallness, it is able to be placed inside the nose cone to reduce air resistance and increase efficiency.

Due to its advanced technologies, refined materials and unique design, H19.2-100kw wind turbinewind energy utilization factor is as high as 0.42 while generator efficiency is higher than 0.92.


Smart Control


H19.2-100kw wind turbine is controlled by a comprehensive smart system. Through our years of monitoring on wind turbine operation, we successfully develop an automatic control system for small and medium scaled wind turbines.


This smart system is able to automatically seek wind direction and constantly monitor generator working status, rotation speed, generator temperature, wind speed and direction etc. All data will be transmitted to control center.

When abnormal situation takes place ,our control center will instruct wind turbine to deflect from wind direction. After problem is released, wind turbine will turn to face wind direction again and resume generation.

H19.2-100kw wind turbine systems, both off grid and grid tied

How the wind turbine system work__2.jpg

data of the inveter


MODEL

100KW

INPUT VALUE of HUMMER (DC side)


DC input voltage range

300V-500V

Consecutive overloading capacity

110%

Rated DC output Power

100KW

Personal Protection

Ground

OUTPUT VALUE of HUMMER (AC side)


Rated power

100KW

AC Voltage Range(LINE -TO-NEUTRAL)

180-250V AC/180-260V AC/180-270V AC

AC Voltage Range(LINE -TO-LINE)

340-420V AC

AC Frequency

47-51.5HZ/57-61.5HZ

Power Factor

>0.99

MAX Efficiency

95%

European Efficiency

92%

Internal Consumption during Operation

<10W standby

Protection

Short circuit protection, over Heat protection, over load protection, safety protection

Total Current Harmonic Distortion (THD)

THD<3%

Phase Shift

0

Utility Monitor

According to UL1741

Mechanical Specifications


Size(W*H*D)

1285 x1085 x 2085mm

Net weight

240kg

Temperature

-20°C~+40°C

Characteristics


Utility Disconnect

Connect to NEC

Cooling

Wind cooling

Display

LED and LCD

Communication

RS485

EMC (Electromagnetic compatibility)

EN50081, part1

EN50082, part2

Safety

EN 50438

Grid interference

EN61000-3-2

Main technical parameter:

Rated power(W)

100000

Maximum output power (W)

120000

Charging voltage (V)

DC 460

Blade quantity

3

Rotor blade material

GRP

Rotor blade diameter (ft.)

 20.8m

Start-up wind speed (mph)

5 (2.0m/s)

Rated wind speed (mph)

25 (11.0m/s)

Rated rotating rate (r/min)

100

Wind energy utilizing ratio (Cp)

0.42

Generator output

Frequency conversion AC

Rated charging current (A)

218

The maximum charging current (in a short time) (A)

246

Output AC frequency (Hz)

0~400

Generator efficiency

>0.92

Free standing tower diameter (in.)

Ø53.1*Ø20.9 (Φ1350×Φ530mm)

Tower height (ft.)

24m

The weight of generator (lb)

2646 (1200kg)

Suggested Battery (Ah)

800/1500
