H2.7-500W Wind Solar Hybrid Wind Turbine






H2.7-500W Wind Solar Hybrid Wind Turbine

H2.7-500W Wind Solar Hybrid Wind Turbine

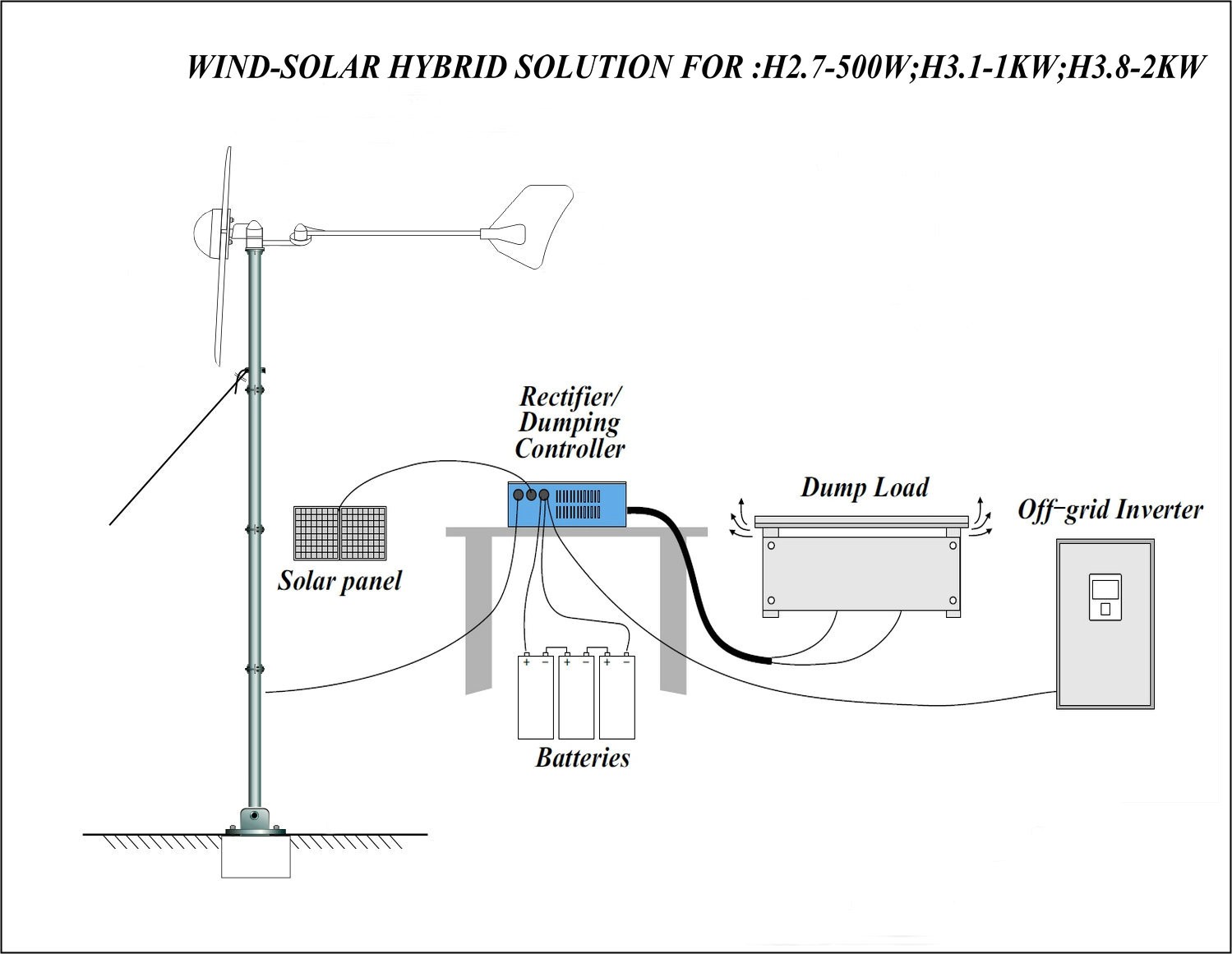

H2.7-500W Wind Solar Hybrid Wind Turbine Structure

H2.7-500W Wind Solar Hybrid Wind Turbine Structure

H2.7-500W Wind Solar Hybrid Wind Turbine Structure

Hummer manufactures and offers advanced H2.7-500W Wind Solar Hybrid Wind Turbine

specifically designed for residential houses; farms; telecommunication stations; commercial

wind farms; water-pumping, etc. The electricity from H2.7-500W Wind Solar Hybrid Wind

Turbine charges the batteries after being rectified and powers the loads through the inverter.

Features with Intelligent charging and discharging,independent power supply. Our products

are third party certified and during the past 10 years, H2.7-500W Wind Turbine have been

exported to 91 countries and areas, such as the USA, Canada, Australia, Germany, the UK,

Italy, France, India, Spain etc. For more information on H2.7-500W Wind Solar Hybrid Wind

Turbine such as users manuals, data sheet, PDF documents, certifications

please email us sales@allwindturbine.com or call 086 551 65314300

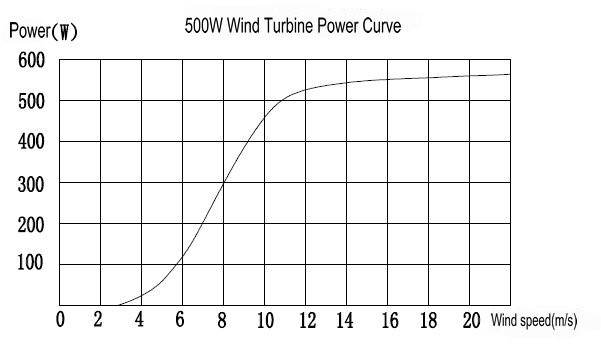

H2.7-500W Wind Solar Hybrid Wind Turbine curve

H2.7-500W Wind Solar Hybrid Wind Turbine curve



H2.7-500W Wind Solar Hybrid Wind Turbine Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф2.7 m / 8.9 feet
Swept Area 5.73 m2 / 61.7 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 500W @ 11m/s / 24.6 mph
Maximum Output Power 570W @  20m/s / 44.7 mph
Battery Bank Voltage 24 Vdc
System Output Voltage 110/220 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 600 r/min
Working Wind Speed 3-25 m/s / 6.7-82.0  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 6.5 kg / 14.3 lbs
Generator Efficiency >0.78
Wind Energy Utilizing Ratio 0.48 Cp
Energy monitoring & User control LED display
Gearbox None, Direct drive with front generator design
Over Speed Regulation Passive furling tail design
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts

How H2.7-500W Wind Solar Hybrid Wind Turbine works

How H2.7-500W Wind Solar Hybrid Wind Turbine works
