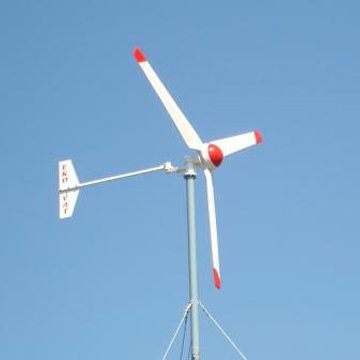

H2.7-500w all-in-one system



  • Products Visitors:6293
  • Product Name:H2.7-500w all-in-one system
  • Package:0.283 CBM, 3 Packages

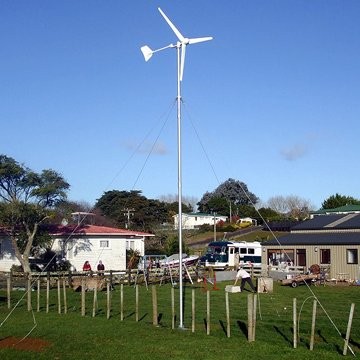

  • Size:2.7m wind blades, 6m guyed tower
  • Model:H2.7-500W



Detailed Product Description


NO MOQ wind generator
1.CE proved+7 patents
2.high efficiency
3.NO MO+wholesale price
4.professional factory



H2.7-500w all-in-one system with the features of :



Small & light strucutre ,which has patented technologies ,the weight of its generator just 6.5kg.

Swift start up at low wind speed:Its start up wind speed is 3m/s

Low rated wind speed:7m/s

High output efficiency: The generator efficiency is more than 0.78 ,max output is 1000W

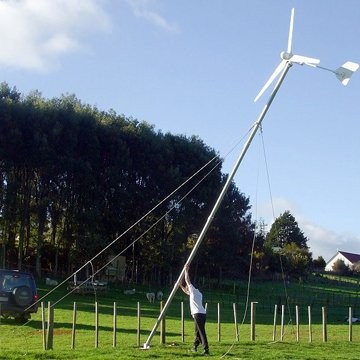

500W home wind turbine with CE certificate ,very easy to install .



The main technical data of H2.7-500w all-in-one system :

H2.7-500W All-In-One System Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф2.7 m / 8.9 feet
Swept Area 5.73 m2 / 61.7 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 500W @ 11m/s / 24.6 mph
Maximum Output Power 570W @  20m/s / 44.7 mph
Battery Bank Voltage 24 Vdc
System Output Voltage 110/220 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 600 r/min
Working Wind Speed 3-25 m/s / 6.7-82.0  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 6.5 kg / 14.3 lbs
Generator Efficiency >0.78
Wind Energy Utilizing Ratio 0.48 Cp
Energy monitoring & User control LED display
Gearbox None, Direct drive with front generator design
Over Speed Regulation Passive furling tail design
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts
