H3.1-1KW Grid Tied Wind Turbine
H3.1-1KW Grid Tied Wind Turbine Components

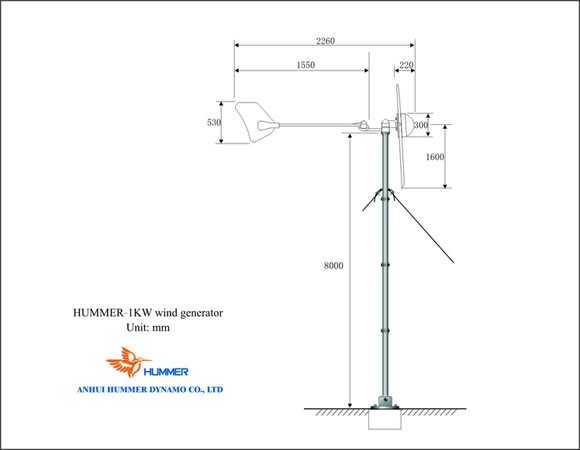

H3.1-1KW Grid Tied Wind Turbine Structure
Hummer manufactures and offers advanced H3.1-1KW Grid Tied Wind Turbine specifically
designed for residential houses; farms; telecommunication stations; commercial wind farms;
water-pumping, etc. The electricity from H3.1-1KW Grid Tied Wind Turbine outputs to the
grid-tied inverter after being rectified. When the input DC voltage reaches up to the start-up
voltage,the inverter will merge into state grid. Featured with wind power merging into state grid.
Our products are third party certified and during the past 10 years, H3.1-1KW Off Grid Wind
Turbine have been exported to 91 countries and areas, such as the USA, Canada, Australia,
Germany, the UK, Italy, France, India, Spain etc. For more information on 1KW Wind Turbine
such as users manuals, data sheet, PDF documents, certifications please email us
sales@allwindturbine.com or call 086 551 65314300
H3.1-1KW Grid Tied Wind Turbine curve
H3.1-1000W Grid Tied Wind Turbine Specifications
Configuration
3 Blades, Horizontal axis, Upwind
Rotor Diameter
Ф3.1 m / 10.2 ft
Swept Area
7.55 m2 / 81.3 ft2
Direction of Rotation
Clockwise looking upwind
Blade Material
Fiberglass reinforced composite
Rated Power
1 kW @ 10m/s / 22.4 mph
Maximum Output Power
1.2 kW @ 20m/s / 44.7 mph
Battery Bank Voltage
60 Vdc
System Output Voltage
110/220 Vac
Cut-in Wind Speed
3 m/s / 6.7 mph
Rated rotating rate
500 r/min
Working Wind Speed
3-25 m/s / 6.7-82.1 mph
Survival Wind Speed
50 m/s / 164 mph
Alternator
Permanent magnet alternator, SCF technology
Alternator Weight
15 kg / 33.1 lbs
Generator Efficiency
>0.80
Wind Energy Utilizing Ratio
0.45 Cp
Energy monitoring & User control
LED display
Gearbox
None, Direct drive with front generator design
Over Speed Regulation
Passive furling tail design
Shutting Down Method
Manual & Automatic electromagnetism Braking
Warranty
2 years for generator and 1 year for other parts

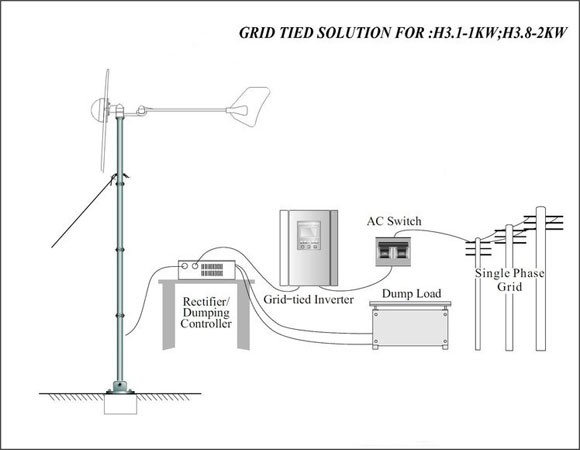

How H3.1-1KW Grid Tied Wind Turbine works
