H3.1-1KW Off Grid Wind Turbine



  • Products Visitors:3047
  • Product Name:H3.1-1KW Off Grid Wind Turbine
  • Package:0.516 CBM, 4 Packages
  • Size:3.1m wind blades, 8m guyed tower
  • Model:H3.1-1KW

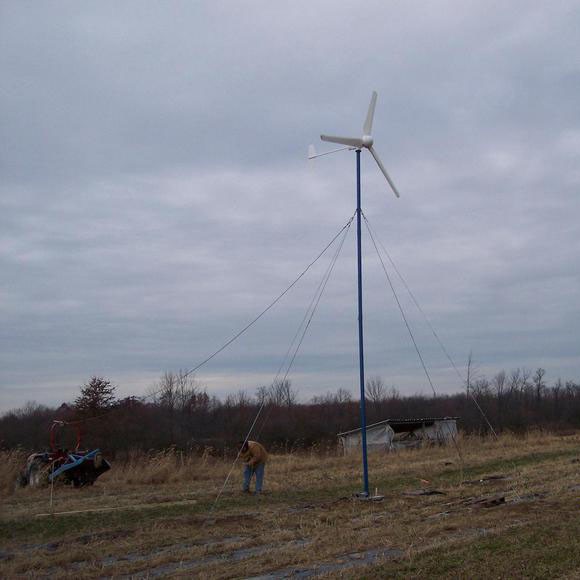

H3.1-1KW Off Grid Wind Turbine

H3.1-1KW Off Grid Wind Turbine

H3.1-1KW Off Grid Wind Turbine Components

H3.1-1KW Off Grid Wind Turbine Components

H3.1-1KW Off Grid Wind Turbine Components

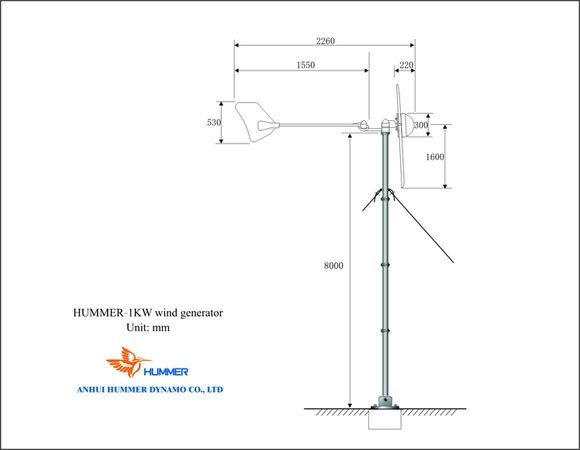

H3.1-1KW Off Grid Wind Turbine Structure

H3.1-1KW Off Grid Wind Turbine Structure

Hummer manufactures and offers advanced H3.1-1KW Off Grid Wind Turbine specifically

designed for residential houses; farms; telecommunication stations; commercial wind farms;

water-pumping, etc. The electricity from H3.1-1KW Off Grid Wind Turbine charges the batteries

after being rectified and powers the loads through the inverter. Featured with intelligent charging

and discharging,independent power supply. Our products are third party certified and during the

past 10 years, H3.1-1KW Off Grid Wind Turbine have been exported to 91 countries and areas,

such as the USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain etc. For more

information on Hummer 1KW Wind Turbine such as users manuals, data sheet, PDF documents,

certifications please email us sales@allwindturbine.com or call 086 551 65314300



Hummer H3.1-1KW Off Grid Wind Turbine curve

 Hummer H3.1-1KW Off Grid Wind Turbine curve



H3.1-1000W Off Grid Wind Turbine Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф3.1 m / 10.2 ft
Swept Area 7.55 m2 / 81.3 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 1 kW @ 10m/s / 22.4 mph
Maximum Output Power 1.2 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 60 Vdc
System Output Voltage 110/220 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 500 r/min
Working Wind Speed 3-25 m/s / 6.7-82.1  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 15 kg / 33.1 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.45 Cp
Energy monitoring & User control LED display
Gearbox None, Direct drive with front generator design
Over Speed Regulation Passive furling tail design
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts

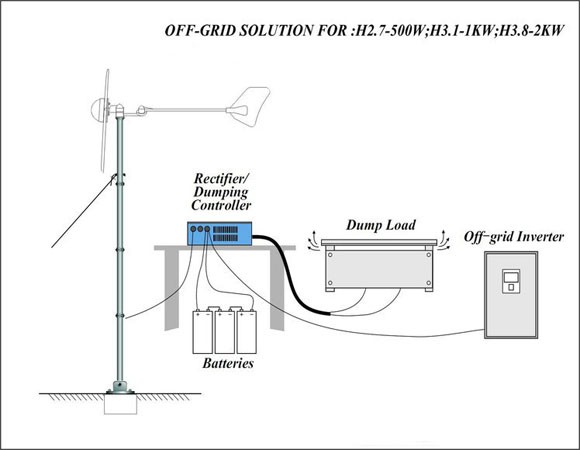

How H3.1-1KW Off Grid Wind Turbine works

How H3.1-1KW Off Grid Wind Turbine works
