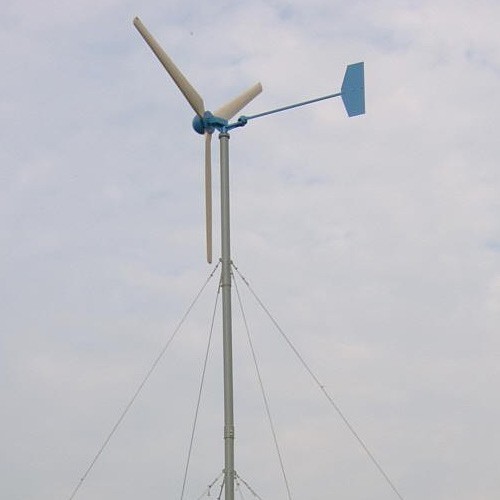

H3.1-1kw wind solar hybrid wind turbine system






1.Advantage:

A.With SCF supercritical generator technology, lighter in weight, smaller in size and higher in efficiency.


B.2SKF bearings to be very durable and have a long life span


C.Siemens PCL intelligent controlling


D.Equipped with a closed transmission slip ring to prevent cable from be wrapped


E.Finished with anticorrosive processing


2.Parameters

H3.1-1000W wind solar hybrid wind turbine system Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф3.1 m / 10.2 ft
Swept Area 7.55 m2 / 81.3 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 1 kW @ 10m/s / 22.4 mph
Maximum Output Power 1.2 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 60 Vdc
System Output Voltage 110/220 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 500 r/min
Working Wind Speed 3-25 m/s / 6.7-82.1  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 15 kg / 33.1 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.45 Cp
Energy monitoring & User control LED display
Gearbox None, Direct drive with front generator design
Over Speed Regulation Passive furling tail design
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts



 3.Curve

1KW Wind Turbine Power Curve


4.Working principle

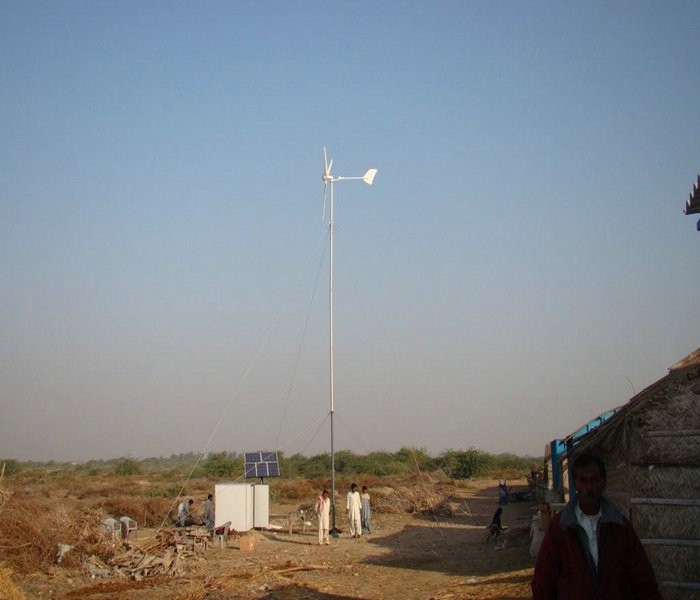

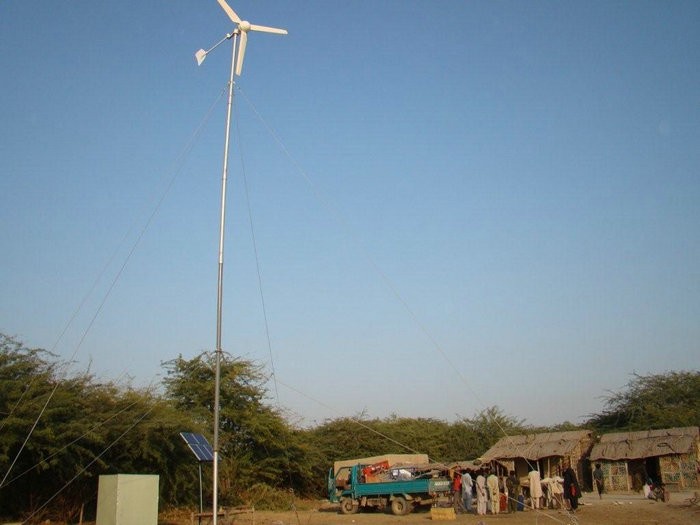

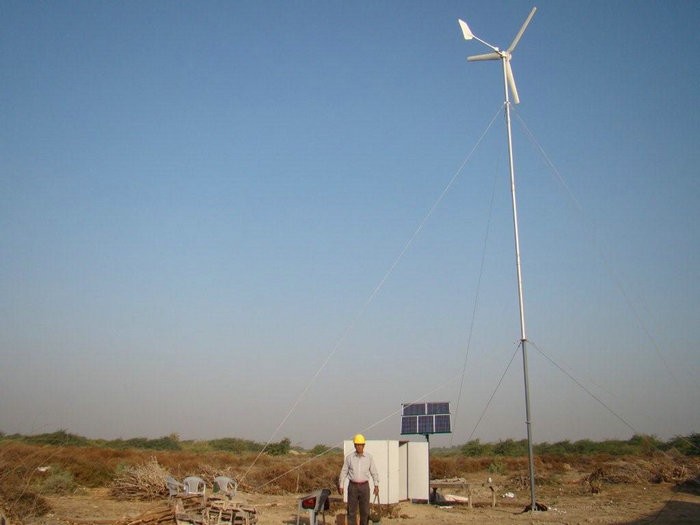

H3.1-1kw wind solar hybrid wind turbine system
