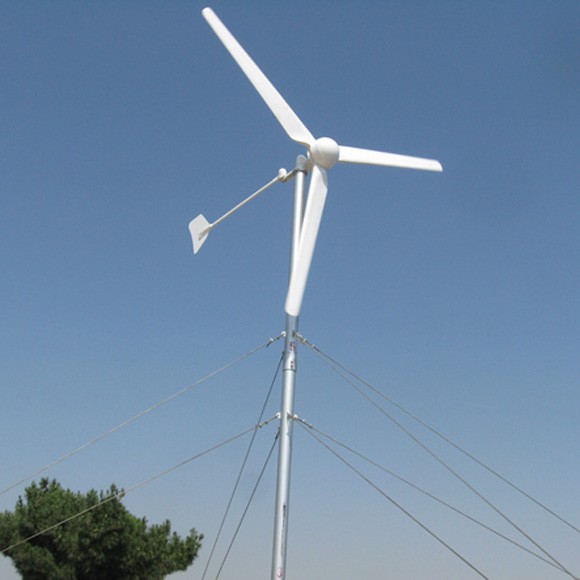

H3.8-2KW Grid Tied Wind Turbine






H3.8-2KW Grid Tied Wind Turbine

H3.8-2KW Grid Tied Wind Turbine

H3.8-2KW Grid Tied Wind Turbine Structure

H3.8-2KW Grid Tied Wind Turbine Structure

H3.8-2KW Grid Tied Wind Turbine Structure

H3.8-2KW Grid Tied Wind Turbine Structure

 Hummer manufactures and offers advanced H3.8-2KW Grid Tied Wind Turbine specifically

designed for residential houses; farms; telecommunication stations; commercial wind farms;

water-pumping, etc. The electricity from H3.8-2KW Grid Tied wind generator outputs to the

grid-tied inverter after being rectified. when the input DC voltage reaches up to the start-up

voltage,the inverter will merge into state grid. Feature with wind power merging into state grid.

Our products are third party certified and during the past 10 years, H3.8-2KW Grid Tied Wind

Turbine have been exported  to 91 countries and areas, such as the USA,  Canada, Australia,

Germany, the UK, Italy, France, India, Spain etc. For more information on H3.8-2KW Wind Turbine

such as users manuals, data sheet, PDF documents, certifications please

email us sales@allwindturbine.com or call 086 551 65314300

H3.8-2KW Grid Tied Wind Turbine curve

H3.8-2KW Grid Tied Wind Turbine curve



H3.8-2000W Grid Tied Wind Turbine Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф3.8 m / 12.5 ft
Swept Area 11.35 m2 / 122.2 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 2 kW @ 11m/s / 24.6 mph
Maximum Output Power 2.2 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 120 Vdc
System Output Voltage 110/220 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 450 r/min
Working Wind Speed 3-25 m/s / 6.7-82.2  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 25 kg / 55.1 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.45 Cp
Energy monitoring & User control LED display
Gearbox None, Direct drive with front generator design
Over Speed Regulation Passive furling tail design
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts

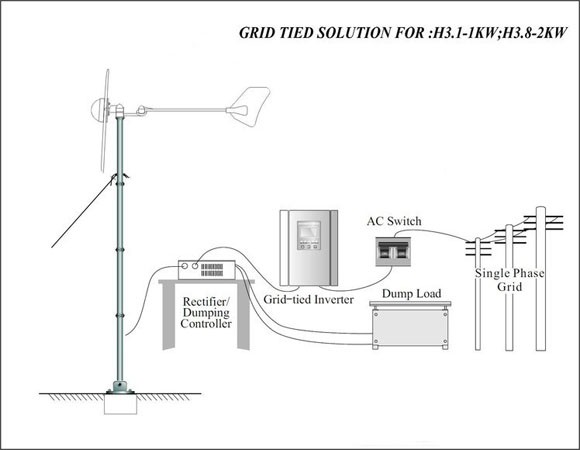

How H3.8-2KW Grid Tied Wind Turbine works

How H3.8-2KW Grid Tied Wind Turbine works
