H3.8-2KW Off Grid Wind Turbine



  • Products Visitors:2910
  • Product Name:H3.8-2KW Off Grid Wind Turbine
  • Size:3.8m wind blades, 10m guyed tower
  • Model:H3.8-2KW
  • Package:0.871 CBM, 7 Packages

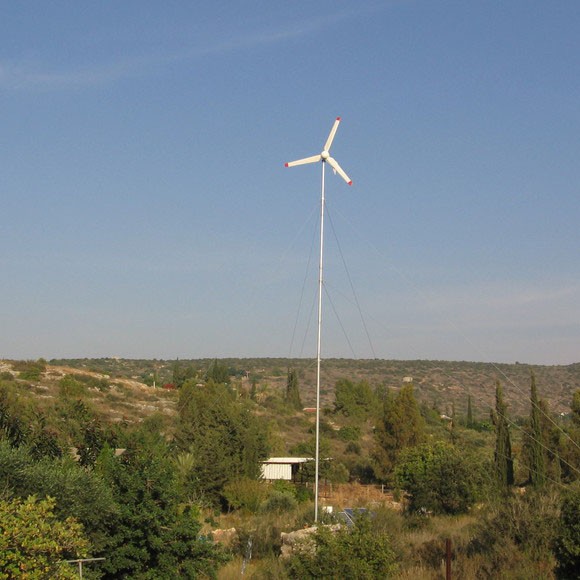

H3.8-2KW Off Grid Wind Turbine

H3.8-2KW Off Grid Wind Turbine

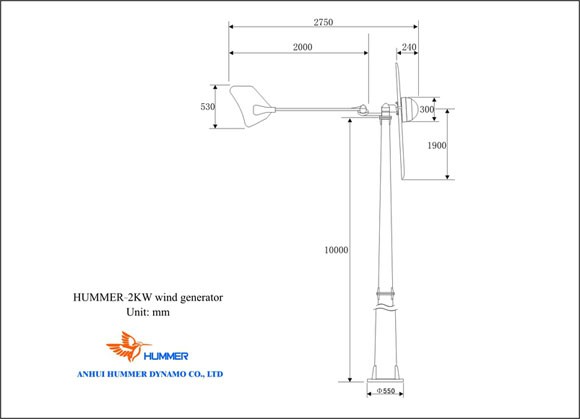

H3.8-2KW Off Grid Wind Turbine Structure

H3.8-2KW Off Grid Wind Turbine Structure

H3.8-2KW Off Grid Wind Turbine Structure

H3.8-2KW Off Grid Wind Turbine Structure

Hummer manufactures and offers advanced H3.8-2KW Grid Tied Wind Turbine specifically

designed for residential houses; farms; telecommunication stations; commercial wind farms;

water-pumping, etc. The electricity from H3.8-2KW Off Grid Wind Turbine charges the

batteries after being rectified and powers the loads through the inverter. Features with

intelligent charging and discharging,independent power supply. Our products are third

party certified and during the past 10 years, H3.8-2KW Grid Tied Wind Turbine have been

exported  to 91 countries and areas, such as the USA, Canada, Australia, Germany, the UK,

Italy, France, India, Spain etc. For more information on H3.8-2KW Wind Turbine such as users

manuals, data sheet, PDF documents, certifications please email us sales@allwindturbine.com

or call 086 551 65314300

H3.8-2KW Off Grid Wind Turbine curve

H3.8-2KW Off Grid Wind Turbine curve


H3.8-2000W Off Grid Wind Turbine Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф3.8 m / 12.5 ft
Swept Area 11.35 m2 / 122.2 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 2 kW @ 11m/s / 24.6 mph
Maximum Output Power 2.2 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 120 Vdc
System Output Voltage 110/220 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 450 r/min
Working Wind Speed 3-25 m/s / 6.7-82.2  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 25 kg / 55.1 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.45 Cp
Energy monitoring & User control LED display
Gearbox None, Direct drive with front generator design
Over Speed Regulation Passive furling tail design
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts

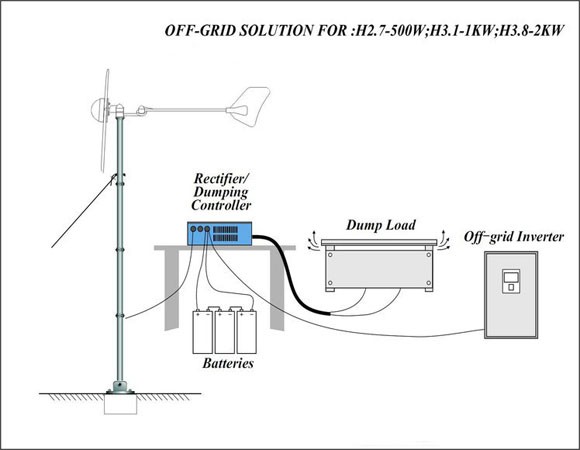

 How H3.8-2KW Off Grid Wind Turbine works

How H3.8-2KW Off Grid Wind Turbine works
