H3.8-2KW Wind Solar Diesel Hybrid System






H3.8-2KW Wind Solar Diesel Hybrid System

H3.8-2KW Wind Solar Diesel Hybrid System

H3.8-2KW Wind Solar Diesel Hybrid System Structure

H3.8-2KW Wind Solar Diesel Hybrid System Structure

Hummer manufactures and offers advanced H3.8-2KW Wind Solar Diesel Hybrid System

specifically designed for residential houses; farms; telecommunication stations; commercial

wind farms; water-pumping, etc. The electricity from wind generator and solar panels charges

the batteries after being rectified and powers the loads through the inverter. Diesel generator

serves as standby when wind and solar energy can meet the power demands. Features with

wind turbine and solar panels as the main power supply with diesel generator as standby to

guarantee the steady power demands. Our products are third party certified and during the

past 10 years, H3.8-2KW Wind Solar Diesel Hybrid System have been exported  to 91

countries and areas, such as the USA, Canada, Australia, Germany, the UK, Italy, France,

India, Spain etc. For more information on 2KW Wind Turbine such as users manuals, data

sheet, PDF documents, certifications please email us sales@allwindturbine.com

or call 086 551 65314300

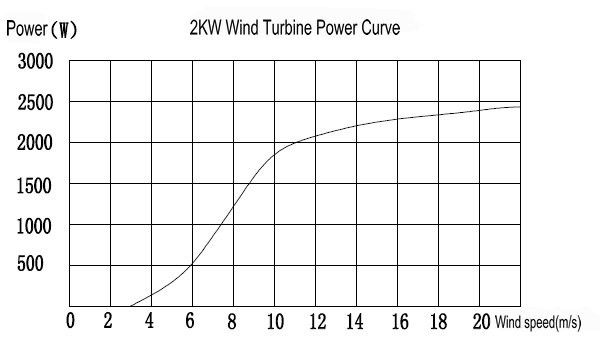

H3.8-2KW Wind Solar Diesel Hybrid System curve

H3.8-2KW Wind Solar Diesel Hybrid System curve



H3.8-2000W Wind Solar Diesel Hybrid System Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф3.8 m / 12.5 ft
Swept Area 11.35 m2 / 122.2 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 2 kW @ 11m/s / 24.6 mph
Maximum Output Power 2.2 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 120 Vdc
System Output Voltage 110/220 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 450 r/min
Working Wind Speed 3-25 m/s / 6.7-82.2  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 25 kg / 55.1 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.45 Cp
Energy monitoring & User control LED display
Gearbox None, Direct drive with front generator design
Over Speed Regulation Passive furling tail design
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts
