H3.8-2KW Wind Solar Hybrid System






H3.8-2KW Wind Solar Hybrid System

H3.8-2KW Wind Solar Hybrid System

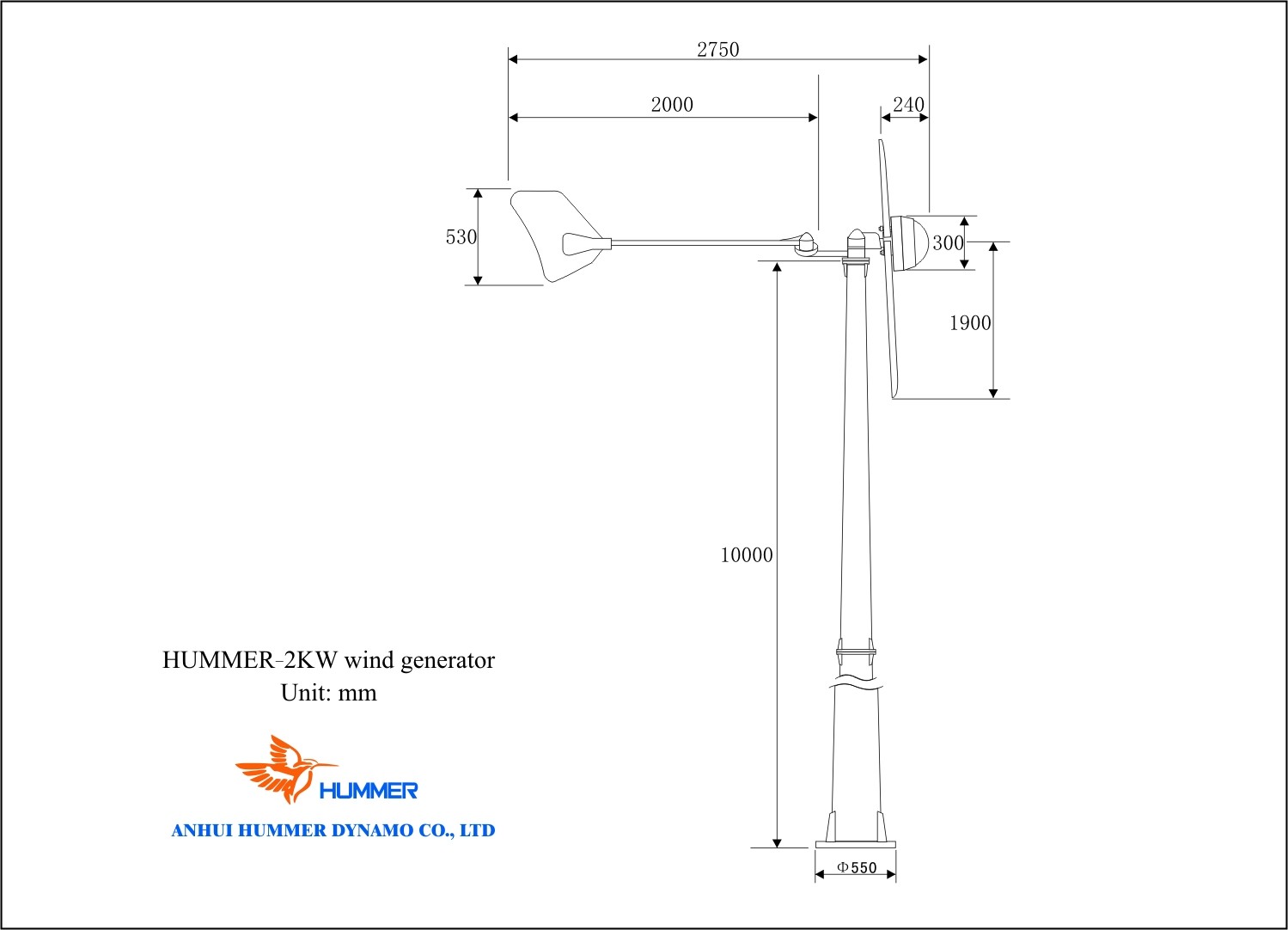

H3.8-2KW Wind Solar Hybrid System Structure

H3.8-2KW Wind Solar Hybrid System Structure

Hummer manufactures and offers advanced H3.8-2KW Wind Solar Hybrid System

specifically designed for residential houses; farms; telecommunication stations; commercial

wind farms; water-pumping, etc. The electricity from wind generator and solar panels charges

the batteries after being rectified and powers the loads through the inverter. Features with

solar energy as complementary when no wind or lower wind, wind energy as complementary

when no sunlight or poor sunlight;the wind-solar complementary with independent power

supply. Our products are third party certified and during the past 10 years, H3.8-2KW Wind

Solar Hybrid Wind Turbine have been exported  to 91 countries and areas, such as the USA,

Canada, Australia, Germany, the UK, Italy, France, India, Spain etc. For more information on

2KW Wind Turbine such as users manuals, data sheet, PDF documents, certifications

please email us sales@allwindturbine.com or call 086 551 65314300

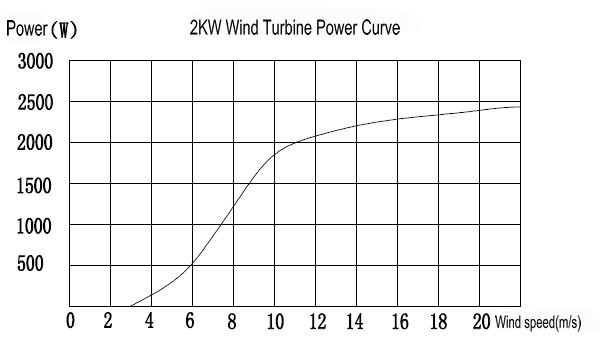

H3.8-2KW Wind Solar Hybrid System curve

H3.8-2KW Wind Solar Hybrid System curve

H3.8-2000W Wind Solar Hybrid System Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф3.8 m / 12.5 ft
Swept Area 11.35 m2 / 122.2 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 2 kW @ 11m/s / 24.6 mph
Maximum Output Power 2.2 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 120 Vdc
System Output Voltage 110/220 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 450 r/min
Working Wind Speed 3-25 m/s / 6.7-82.2  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 25 kg / 55.1 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.45 Cp
Energy monitoring & User control LED display
Gearbox None, Direct drive with front generator design
Over Speed Regulation Passive furling tail design
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts

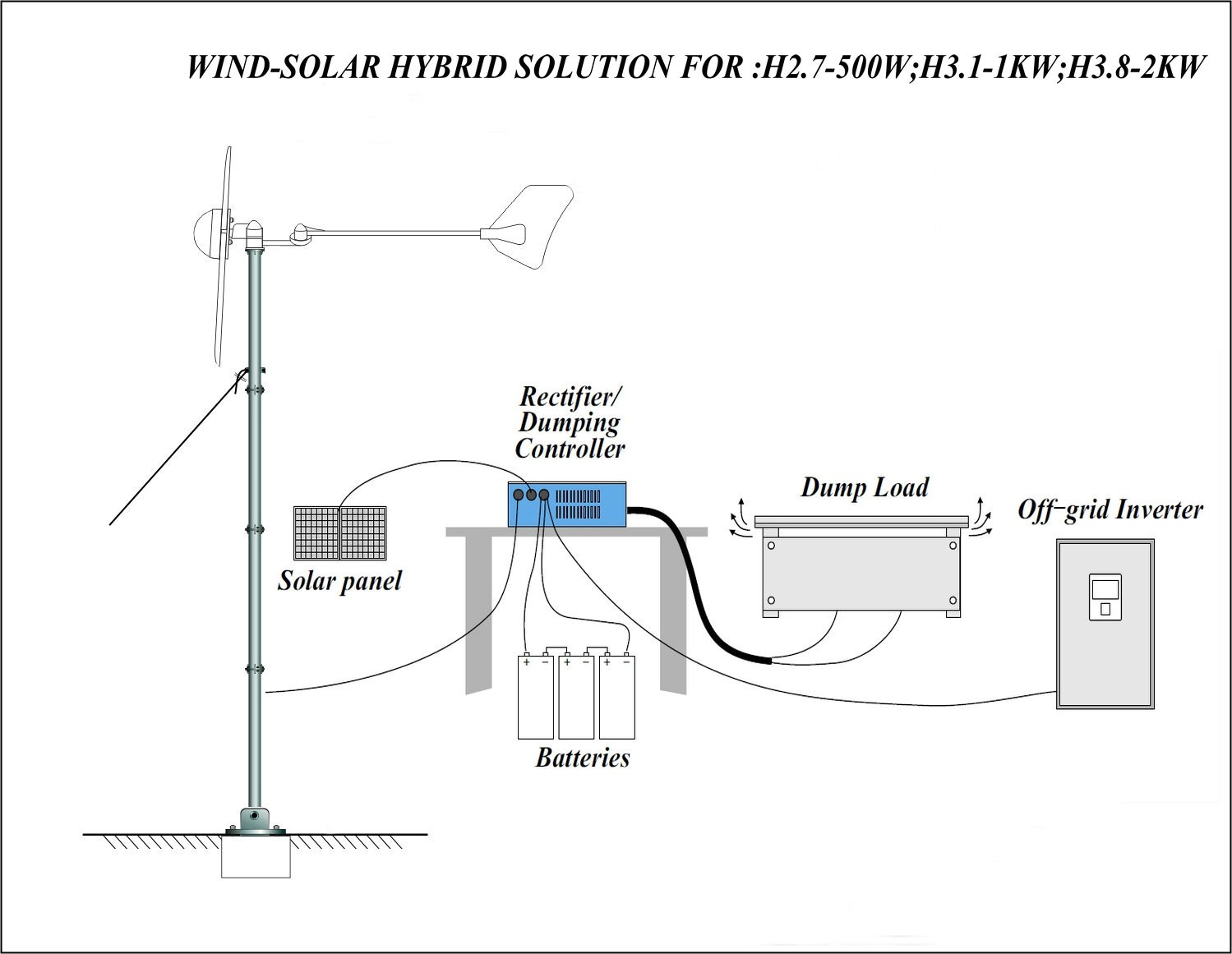

How H3.8-2KW Wind Solar Hybrid System works

How H3.8-2KW Wind Solar Hybrid System works
