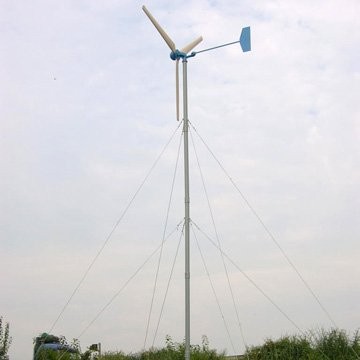

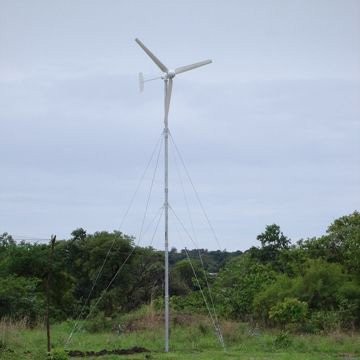

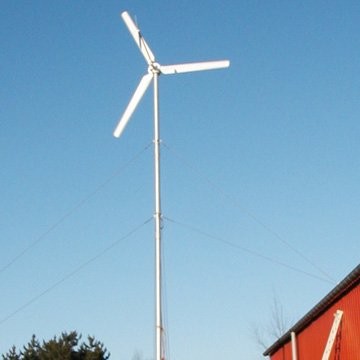

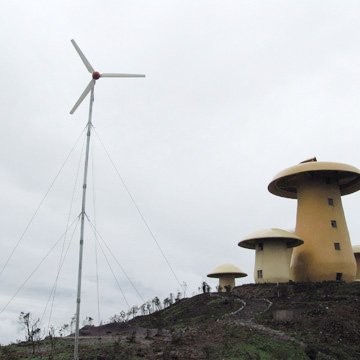

H3.8-2kw wind turbine in Indonesia






Detailed Product Description
H3.8-2kw wind turbine in Indonesia

1.CE proved+7 patents
2.high efficiency+small size
3.NO MOQ+wholesale price
4.professional factory
wind turbine

Features of hummer 2000W wind turbines:

  1. SCF supercritical generator technology, generator weigh only 25kg, generation efficiency over 0.80.

  2. Quality parts use SKF bearings and so on

  3. Sine wave output, drive 800w pump, 2kw appliances etc.

  4. Connect with 600w solar panels to make up the wind solar hybrid system.

  5. Generate 2kw power at 9m / s



Application of Model H3.8-2000W wind turbine
It can drive air-condition (2 horsepower), 800W water pump or other electrical appliances (≤2KW).
Well used in:
 Housing
 Telecommunication Station
 TV Transfer Station
 Monitoring Station (military, hydrology, observatory)
 Water-pumping Station



The main technical datas of 2kw wind power turbine is as bellowing :

H3.8-2000W wind turbine in Indonesia Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф3.8 m / 12.5 ft
Swept Area 11.35 m2 / 122.2 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 2 kW @ 11m/s / 24.6 mph
Maximum Output Power 2.2 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 120 Vdc
System Output Voltage 110/220 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 450 r/min
Working Wind Speed 3-25 m/s / 6.7-82.2  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 25 kg / 55.1 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.45 Cp
Energy monitoring & User control LED display
Gearbox None, Direct drive with front generator design
Over Speed Regulation Passive furling tail design
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts
