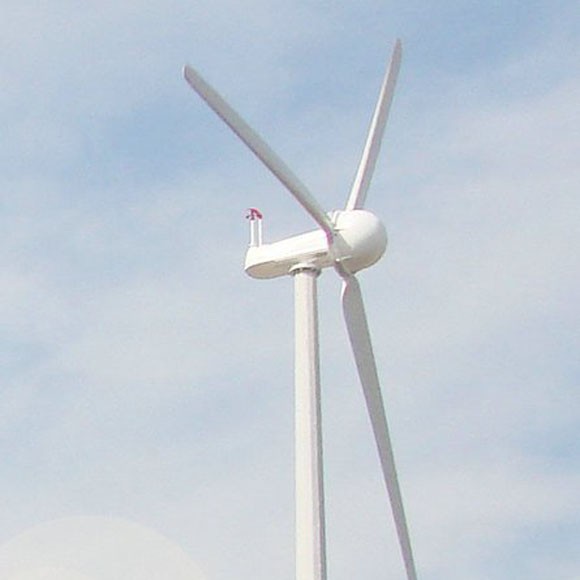

H4.6-3KW Grid Tied Wind Turbine

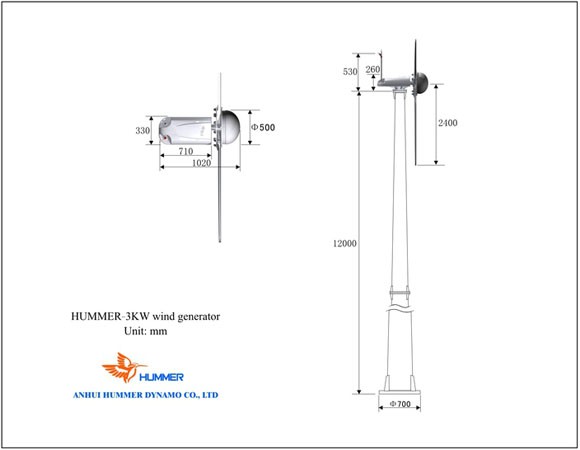

H4.6-3KW Grid Tied Wind Turbine Structure
Hummer manufactures and offers advanced H4.6-3KW Grid Tied Wind Turbine specifically
designed for residential houses; farms; telecommunication stations; commercial wind farms;
water-pumping, etc. The electricity from H4.6-3KW Grid Tied Wind Generator outputs to
the grid-tied inverter after being rectified.when the input DC voltage reaches up to the
start-up voltage,the inverter will merge into state grid. Feature with wind power merging
into state grid. Our products are third party certified and during the past 10 years,
H4.6-3KW Wind Turbine have been exported to 91 countries and areas, such as the
USA, Canada, Australia, Germany,the UK, Italy, France, India, Spain etc. For more
information on H4.6-3KW Grid Tied Wind Turbine such as users manuals, data sheet,
PDF documents, certifications please email us sales@allwindturbine.com or
call 086 551 65314300
H4.6-3KW Grid Tied Wind Turbine curve
H4.6-3KW Grid Tied Wind Turbine Specifications | |
Configuration | 3 Blades, Horizontal axis, Upwind |
Rotor Diameter | Ф4.9 m / 16.1 ft |
Swept Area | 18.86 m2 / 203.0 ft2 |
Direction of Rotation | Clockwise looking upwind |
Blade Material | Fiberglass reinforced composite |
Rated Power | 3 kW @ 10m/s / 22.4 mph |
Maximum Output Power | 3.3 kW @ 20m/s / 44.7 mph |
Battery Bank Voltage | 180 Vdc |
System Output Voltage | 110/220 Vac |
Cut-in Wind Speed | 3 m/s / 6.7 mph |
Rated rotating rate | 265 r/min |
Working Wind Speed | 3-25 m/s / 6.7-82.3 mph |
Survival Wind Speed | 50 m/s / 164 mph |
Alternator | Permanent magnet alternator, SCF technology |
Alternator Weight | 72 kg / 158.7 lbs |
Generator Efficiency | >0.80 |
Wind Energy Utilizing Ratio | 0.40 Cp |
Energy monitoring & User control | Siemens PLC controller with touch screen |
Gearbox | None, Direct drive with front generator design |
Over Speed Regulation | Auto Yawing |
Shutting Down Method | Manual & Automatic electromagnetism Braking |
Warranty | 2 years for generator and 1 year for other parts |

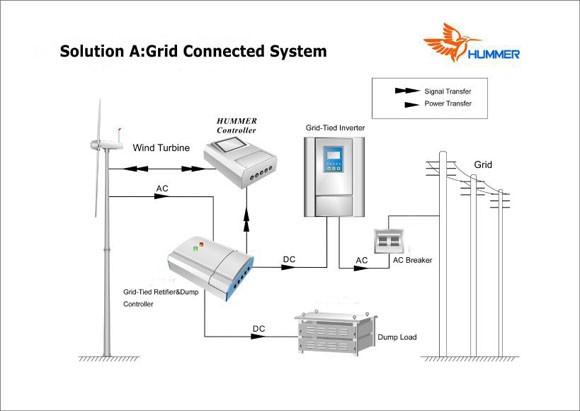

How H4.6-3KW Grid Tied Wind Turbine works
