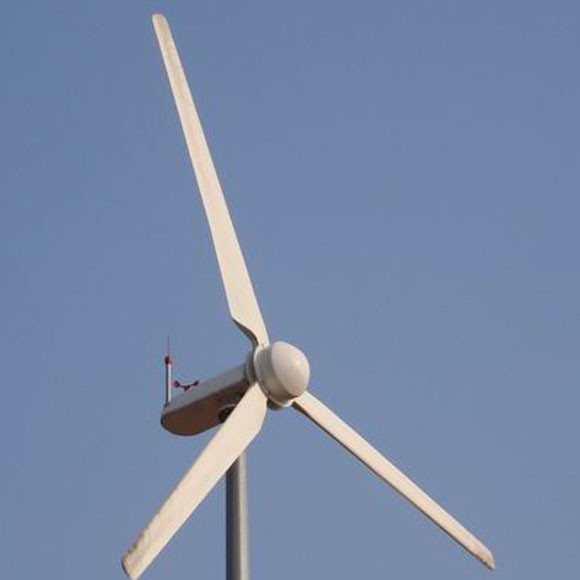

H4.6-3KW Off Grid 48V Wind Turbine






H4.6-3KW Off Grid 48V Wind Turbine

H4.6-3KW Off Grid 48V Wind Turbine

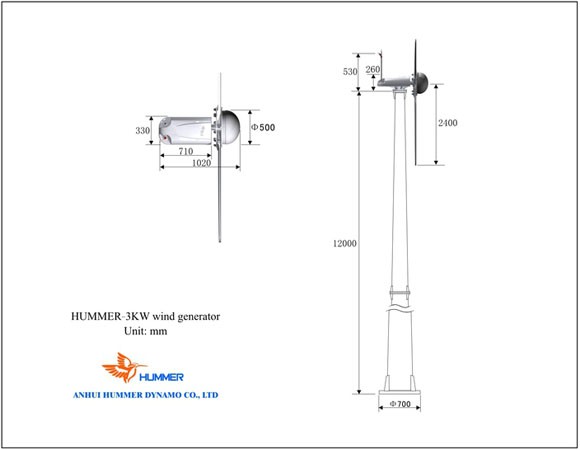

H4.6-3KW Off Grid 48V Wind Turbine Structure

H4.6-3KW Off Grid 48V Wind Turbine Structure

H4.6-3KW Off Grid 48V Wind Turbine Structure

 Hummer manufactures and offers advanced H4.6-3KW Off Grid 48V Wind Turbine

specifically designed for telecommunication stations. The electricity from H4.6-3KW Off Grid

48V wind generator charges the batteries after being rectified and powers the telecommunication

equipment. Features with intelligent charging and discharging,independent power supply.

Our products are third party certified and during the past 10 years, Hummer 3KW Wind Turbine

have been exported to 91 countries and areas, such as the USA, Canada, Australia, Germany,

the UK, Italy, France, India, Spain etc. For more information on 3KW Wind Solar Diesel Hybrid

System such as users manuals, data sheet, PDF documents, certifications please email us

sales@allwindturbine.com or call 086 551 65314300

H4.6-3KW Off Grid 48V Wind Turbine curve

H4.6-3KW Off Grid 48V Wind Turbine curve



H4.6-3KW Off Grid 48V Wind Turbine Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф4.9 m / 16.1 ft
Swept Area 18.86 m2 / 203.0 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 3 kW @ 10m/s / 22.4 mph
Maximum Output Power 3.3 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 180 Vdc
System Output Voltage 110/220 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 265 r/min
Working Wind Speed 3-25 m/s / 6.7-82.3  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 72 kg / 158.7 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.40 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts



How H4.6-3KW Off Grid 48V Wind Turbine works

How H4.6-3KW Off Grid 48V Wind Turbine works
