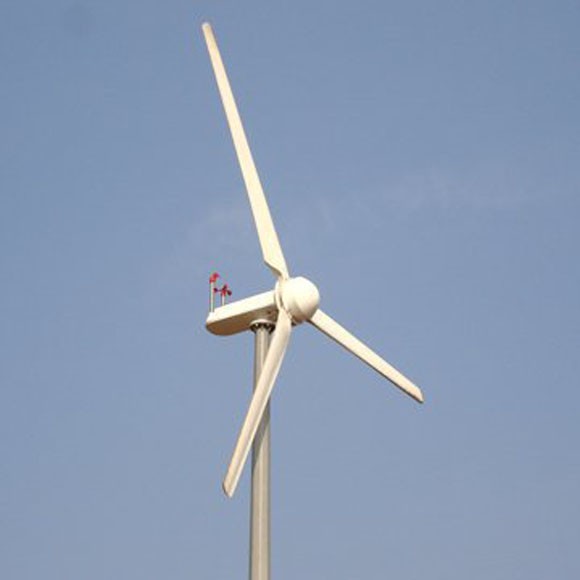

H4.6-3KW Off Grid Wind Turbine

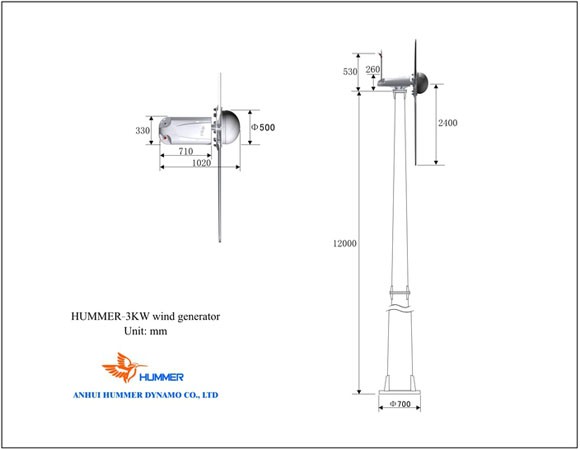

H4.6-3KW Off Grid Wind Turbine Structure
Hummer manufactures and offers advanced H4.6-3KW Off Grid Wind Turbine specifically
designed for residential houses; farms; telecommunication stations; commercial wind farms;
water-pumping, etc. The electricity from H4.6-3KW Off Grid Wind Turbine charges the
batteries after being rectified and powers the loads through the inverter. Features with
intelligent charging and discharging,independent power supply. Our products are third
party certified and during the past 10 years, H4.6-3KW Wind Turbine have been
exported to 91 countries and areas, such as the USA, Canada, Australia, Germany,
the UK, Italy, France, India, Spain etc. For more information on H4.6-3KW Off Grid
Wind Turbine such as users manuals, data sheet, PDF documents, certifications please
email us sales@allwindturbine.com or call 086 551 65314300
H4.6-3KW Off Grid Wind Turbine curve
H4.6-3KW Off Grid Wind Turbine Specifications | |
Configuration | 3 Blades, Horizontal axis, Upwind |
Rotor Diameter | Ф4.9 m / 16.1 ft |
Swept Area | 18.86 m2 / 203.0 ft2 |
Direction of Rotation | Clockwise looking upwind |
Blade Material | Fiberglass reinforced composite |
Rated Power | 3 kW @ 10m/s / 22.4 mph |
Maximum Output Power | 3.3 kW @ 20m/s / 44.7 mph |
Battery Bank Voltage | 180 Vdc |
System Output Voltage | 110/220 Vac |
Cut-in Wind Speed | 3 m/s / 6.7 mph |
Rated rotating rate | 265 r/min |
Working Wind Speed | 3-25 m/s / 6.7-82.3 mph |
Survival Wind Speed | 50 m/s / 164 mph |
Alternator | Permanent magnet alternator, SCF technology |
Alternator Weight | 72 kg / 158.7 lbs |
Generator Efficiency | >0.80 |
Wind Energy Utilizing Ratio | 0.40 Cp |
Energy monitoring & User control | Siemens PLC controller with touch screen |
Gearbox | None, Direct drive with front generator design |
Over Speed Regulation | Auto Yawing |
Shutting Down Method | Manual & Automatic electromagnetism Braking |
Warranty | 2 years for generator and 1 year for other parts |
How H4.6-3KW Off Grid Wind Turbine works
