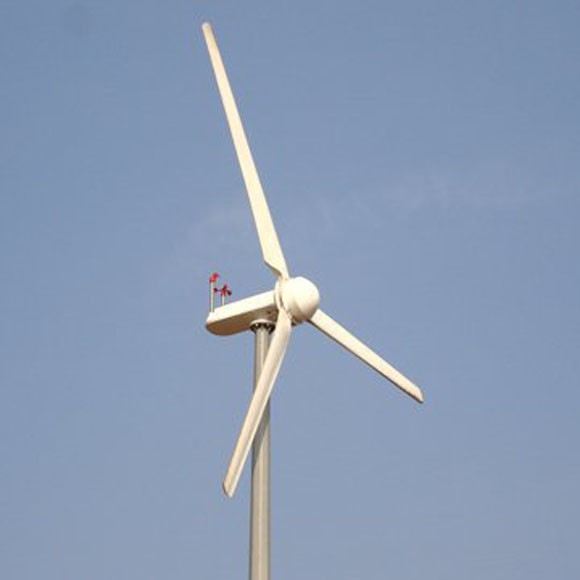

H4.6-3KW Wind Solar Diesel Hybrid System






H4.6-3KW Wind Solar Diesel Hybrid System

H4.6-3KW Wind Solar Diesel Hybrid System

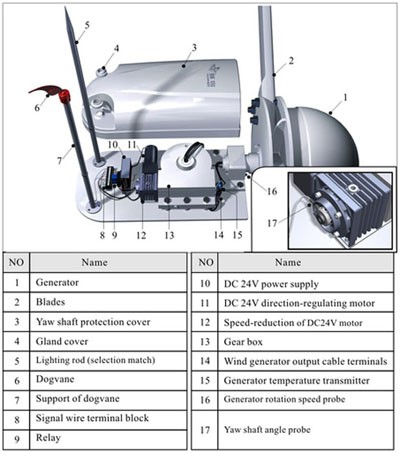

H4.6-3KW Wind Solar Diesel Hybrid System Structure

H4.6-3KW Wind Solar Diesel Hybrid System Structure

H4.6-3KW Wind Solar Diesel Hybrid System Structure

Hummer manufactures and offers advanced H4.6-3KW Wind Solar Diesel Hybrid System

specifically designed for residential houses; farms; telecommunication stations; commercial

wind farms; water-pumping, etc.The electricity from 3KW Wind Solar Diesel Hybrid  Wind

Turbine and solar panels charges the batteries after being rectified and powers the loads

through the inverter. Diesel generator serves as standby when wind and solar energy can

meet the power demands. Features with wind turbine and solar panels as the main power

supply with diesel generator as standby to guarantee the steady power demands. Our

products are third party certified and during the past 10 years, Hummer 3KW Wind Turbine

have been exported to 91 countries and areas, such as the USA, Canada, Australia,

Germany, the UK, Italy, France, India, Spain etc. For more information on 3KW Wind Solar

Diesel Hybrid System such as users manuals, data sheet, PDF documents, certifications

please email us sales@allwindturbine.com or call 086 551 65314300


H4.6-3KW Wind Solar Diesel Hybrid System curve

H4.6-3KW Wind Solar Diesel Hybrid System curve

H4.6-3KW Wind Solar Diesel Hybrid System Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф4.9 m / 16.1 ft
Swept Area 18.86 m2 / 203.0 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 3 kW @ 10m/s / 22.4 mph
Maximum Output Power 3.3 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 180 Vdc
System Output Voltage 110/220 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 265 r/min
Working Wind Speed 3-25 m/s / 6.7-82.3  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 72 kg / 158.7 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.40 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts

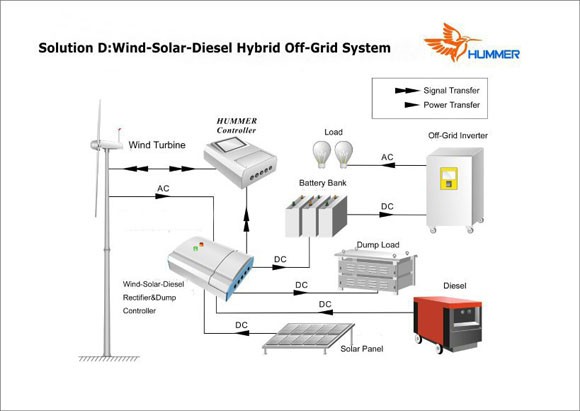

How H4.6-3KW Wind Solar Diesel Hybrid System works

How H4.6-3KW Wind Solar Diesel Hybrid System works
