H4.6-3KW Wind Turbine



  • Products Visitors:2586
  • Product Name:H4.6-3KW Wind Turbine
  • Package:1.338 CBM, 8 Packages
  • Size:12m free standing tower
  • Model:H4.6-3KW

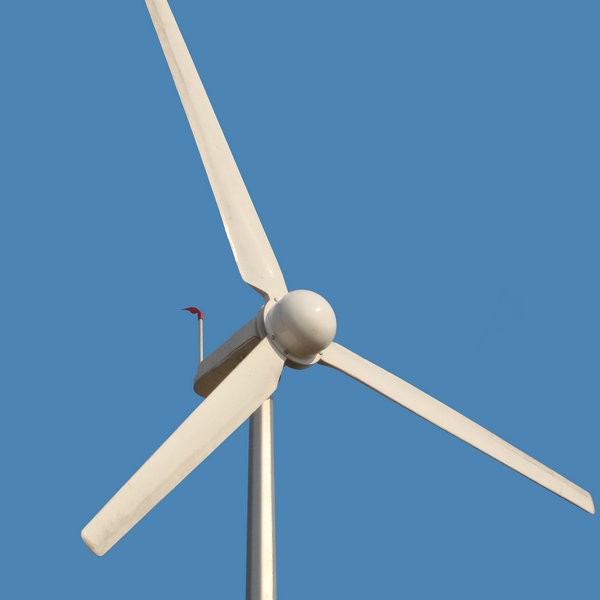

H4.6-3KW Wind Turbine

H4.6-3KW Wind Turbine

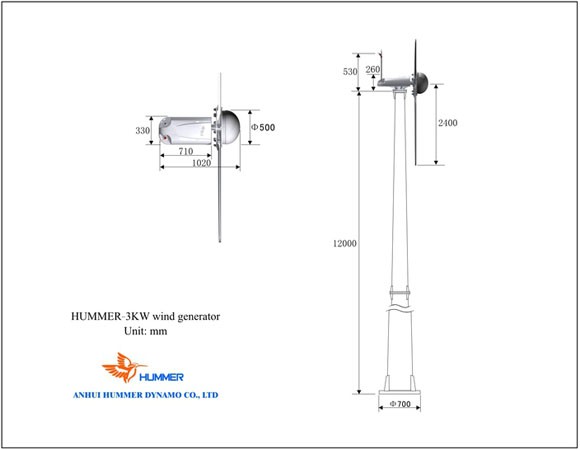

H4.6-3KW Wind Turbine Structure

H4.6-3KW Wind Turbine Structure

H4.6-3KW Wind Turbine Structure

Hummer manufactures and offers advanced H4.6-3KW Home Wind Energy specifically designed

for residential houses; farms; telecommunication stations; commercial wind farms; water-pumping,

etc. Hummer Intelligent model 3KW with Siemens PLC controller adopting human-oriented

touch screen, it also adopting SCF supercritical technology and 2 SKF bearings.Auto yawing

and auto wind seeking function ensure system safety and make full use of wind energy.

 H4.6-3KW Wind Turbine curve

H4.6-3KW Wind Turbine curve



H4.6-3KW Wind Turbine Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф4.9 m / 16.1 ft
Swept Area 18.86 m2 / 203.0 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 3 kW @ 10m/s / 22.4 mph
Maximum Output Power 3.3 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 180 Vdc
System Output Voltage 110/220 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 265 r/min
Working Wind Speed 3-25 m/s / 6.7-82.3  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 72 kg / 158.7 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.40 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts
