H6.4-5KW Grid Tied Wind Turbine






H6.4-5KW Grid Tied Wind Turbine

H6.4-5KW Grid Tied Wind Turbine

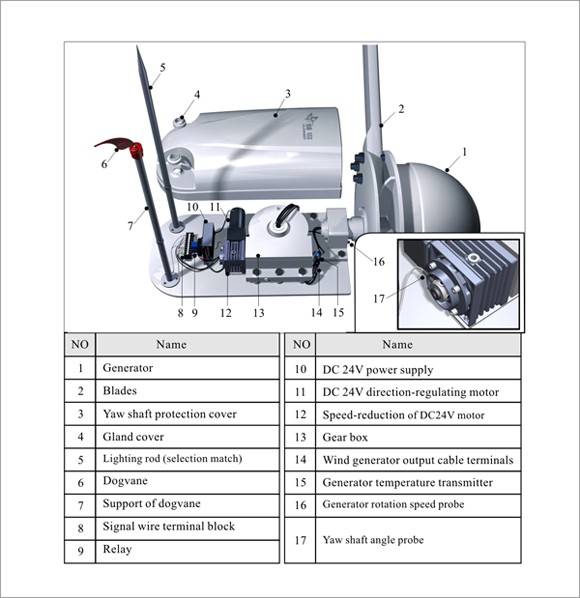

H6.4-5KW Grid Tied Wind Turbine Structure

H6.4-5KW Grid Tied Wind Turbine Structure

H6.4-5KW Grid Tied Wind Turbine Structure

Hummer manufactures and offers advanced H6.4-5KW Grid Tied Wind Turbine specifically

designed for residential houses; farms; telecommunication stations; commercial wind farms;

water-pumping, etc. The electricity from 5KW Grid Tied Wind Turbine outputs to the grid-tied

inverter after being rectified.when the input DC voltage reaches up to the start-up voltage,

the inverter will merge into state grid. Feature with wind power merging into state grid. Our

products are third party certified and during the past 10 years, Hummer Wind Turbine have

been exported to 91 countries and areas, such as the USA, Canada, Australia, Germany,

the UK, Italy, France, India, Spain etc. For more information on 5KW Wind Turbine such

as users manuals, data sheet, PDF documents, certifications please email us

sales@allwindturbine.com or call 086 551 65314300

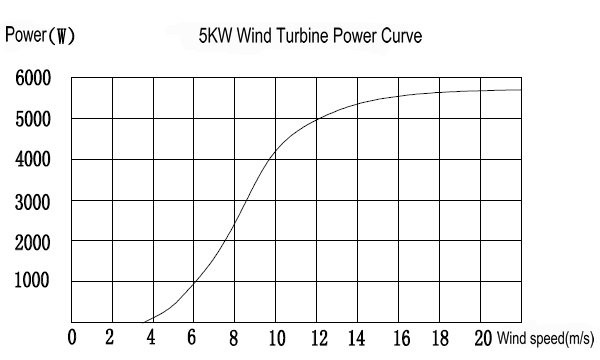

H6.4-5KW Grid Tied Wind Turbine curve

H6.4-5KW Grid Tied Wind Turbine curve



H6.4-5KW Grid Tied Wind Turbine Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф6.4 m / 20.1 ft
Swept Area 32.17 m2 / 346.3 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 5 kW @ 12m/s / 26.8 mph
Maximum Output Power 5.6 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 240 Vdc
System Output Voltage 110/220/380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 240 r/min
Working Wind Speed 3-25 m/s / 6.7-82.4  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 147 kg / 324.1 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.40 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts

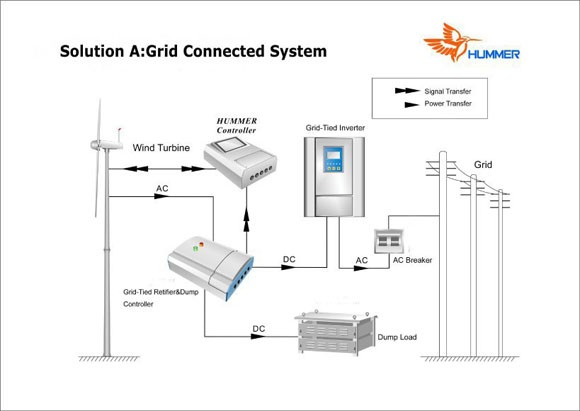

How H6.4-5KW Grid Tied Wind Turbine works

How H6.4-5KW Grid Tied Wind Turbine works
