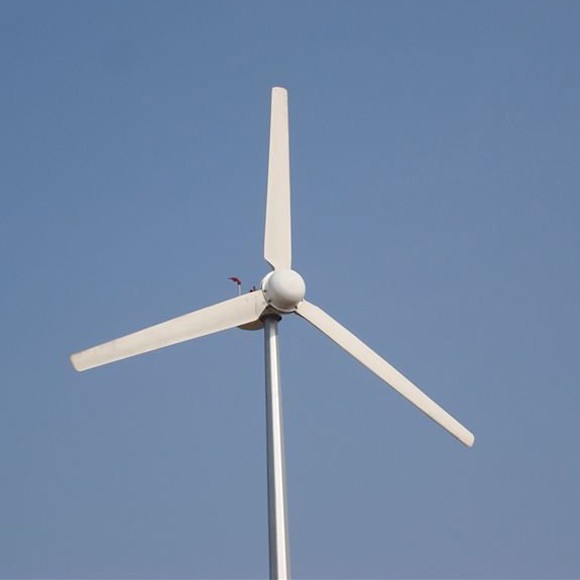

H6.4-5KW Wind Solar Diesel Hybrid System






H6.4-5KW Wind Solar Diesel Hybrid System

H6.4-5KW Wind Solar Diesel Hybrid System

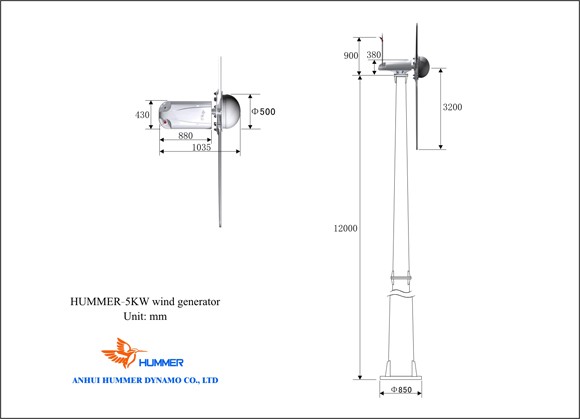

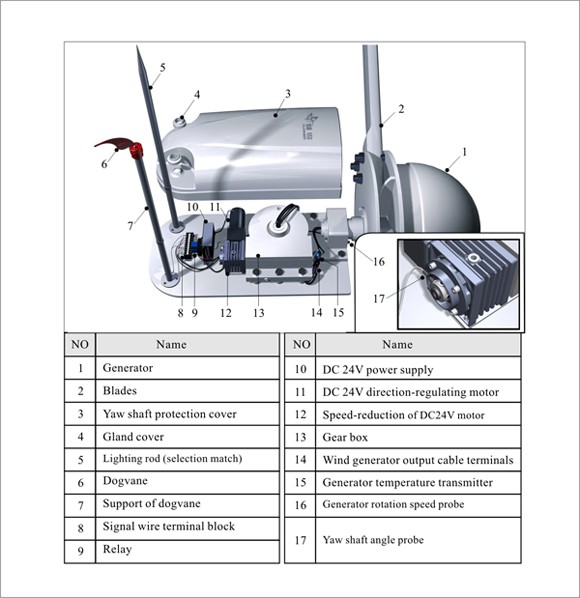

H6.4-5KW Wind Solar Diesel Hybrid System Structure

H6.4-5KW Wind Solar Diesel Hybrid System Structure

H6.4-5KW Wind Solar Diesel Hybrid System Structure

Hummer manufactures and offers advanced H6.4-5KW Wind Solar Diesel Hybrid System

specifically designed for residential houses; farms; telecommunication stations; commercial

wind farms; water-pumping, etc. The electricity from 5kw wind solar diesel hybrid wind generator

and solar panels charges the batteries after being rectified and powers the loads through the

inverter. Diesel generator serves as standby when wind and solar energy can meet the power

demands. Our products are third party certified and during the past 10 years, Hummer Wind

Turbine have been exported to 91 countries and areas, such as the USA, Canada, Australia,

Germany, the UK, Italy, France, India, Spain etc. For more information on H6.4-5KW wind solar

diesel hybrid system such as users manuals, data sheet, PDF documents, certifications

please email us sales@allwindturbine.com or call 086 551 65314300

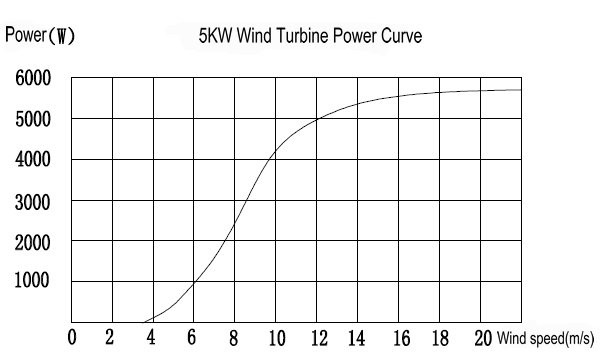

H6.4-5KW Wind Solar Diesel Hybrid System curve

H6.4-5KW Wind Solar Diesel Hybrid System curve



H6.4-5KW Wind Solar Diesel Hybrid System Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф6.4 m / 20.1 ft
Swept Area 32.17 m2 / 346.3 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 5 kW @ 12m/s / 26.8 mph
Maximum Output Power 5.6 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 240 Vdc
System Output Voltage 110/220/380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 240 r/min
Working Wind Speed 3-25 m/s / 6.7-82.4  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 147 kg / 324.1 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.40 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts

 How H6.4-5KW Wind Solar Diesel Hybrid System works

How H6.4-5KW Wind Solar Diesel Hybrid System works
