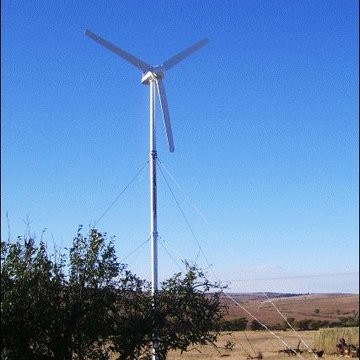

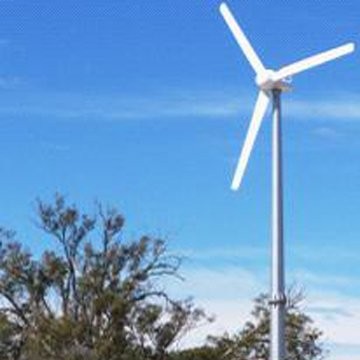

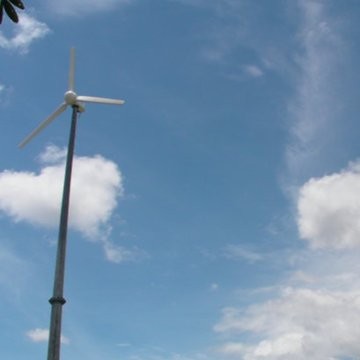

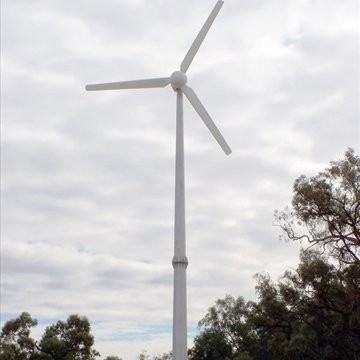

H6.4-5kw grid-tied wind generator system






1.Features:

A.Advanced SCF supercritical generator technology, generator weight is 1/3-1/5 of traditional ones, make hummer wind turbine lighter,smaller and more efficient;



B.Innovative breeze start patent technology;



C.Two SKF bearing, stable inner and outer ring, it has higher rated bearings and lower noise as well as long service life;



D.Topquality component, hummer generator body wins 4 proprietary intellectual property rights, which be made of high-efficiency magnetic materials, special copper alloy, high-strength stainless steel and aeronautic aluminum alloys, make high generating efficiency.


2.Parameters
H6.4-5KW grid-tied wind generator system Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф6.4 m / 20.1 ft
Swept Area 32.17 m2 / 346.3 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 5 kW @ 12m/s / 26.8 mph
Maximum Output Power 5.6 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 240 Vdc
System Output Voltage 110/220/380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 240 r/min
Working Wind Speed 3-25 m/s / 6.7-82.4  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 147 kg / 324.1 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.40 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts

3.Curve
5KW Wind Turbine Power Curve


4.Working principle
5KW Wind Generator Grid-Tied System
