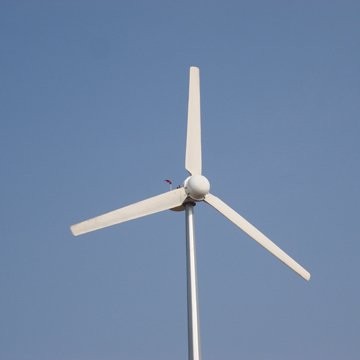

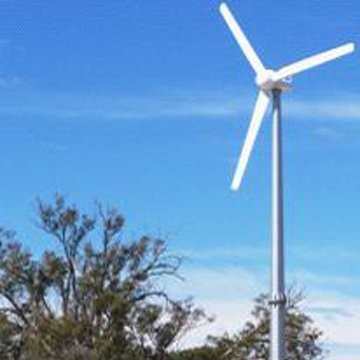

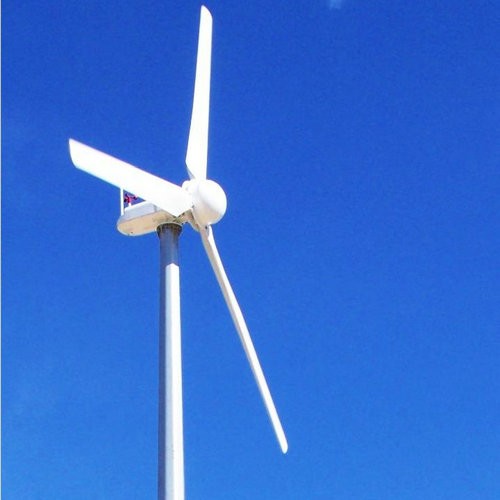

H6.4-5kw wind-solar hybrid turbine system






1.Features:

A.As a professional manufacturer of small-sized wind generator equipment,we can offer products from 500w-20kw wind generator equipment.



B.They have the great features of high power efficiency ;low energy comsumption by the wind turbine generator itself ;low start-up wind speed with the patented technology ;long life design with easily installation and maintenance.



C.5kw wind generator equipment is well used in :

housing ;ships ;remote rural areas;telecommunication stations ,monitoring stations, water-pumping etc.


2.Parameters

H6.4-5KW wind-solar hybrid turbine system Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф6.4 m / 20.1 ft
Swept Area 32.17 m2 / 346.3 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 5 kW @ 12m/s / 26.8 mph
Maximum Output Power 5.6 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 240 Vdc
System Output Voltage 110/220/380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 240 r/min
Working Wind Speed 3-25 m/s / 6.7-82.4  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 147 kg / 324.1 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.40 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts

3.Curve

5KW Wind Turbine Power Curve


4.Working principle

5KW Wind-Solar Hybrid System
