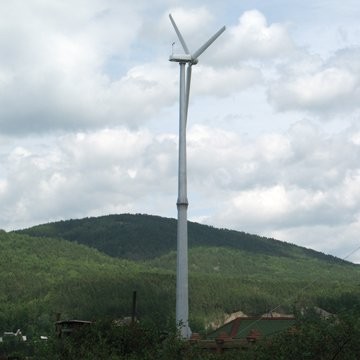

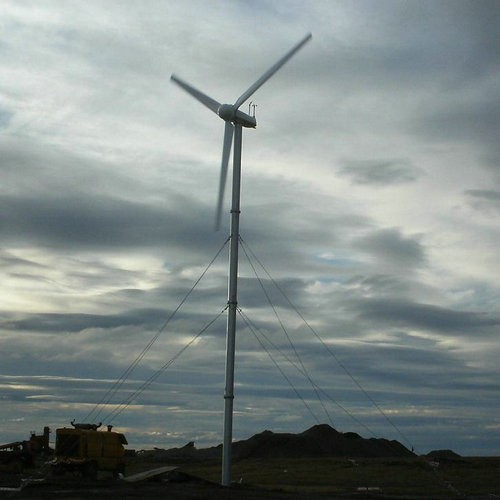

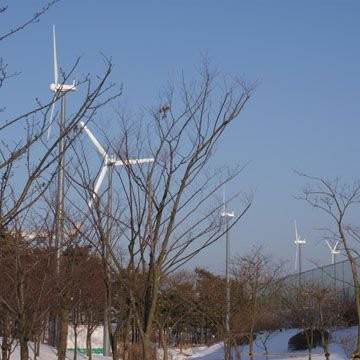

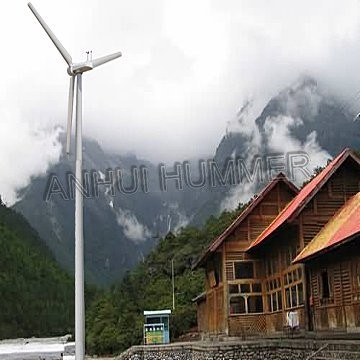

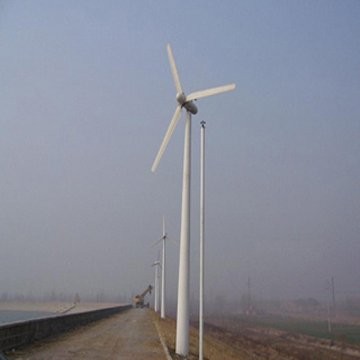

H8.0-10kw grid-tied wind generator system






1.Featurers:

A.Small & light structure ,the generator is installed inside the nose cone which can help for heat dispersion and reduce the wind resistance



B.Blades designed according structure and aircraft technology



C.Generator built with permanent magnetic materials which have 4 patented technologies



D.Advanced controlling system ,can be connected to the local grid directly or for off-grid usage



E.Special anti-corrosion treatment of the parts



2.Parameters

H8.0-10KW Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф8.0 m / 26.2 ft
Swept Area 50.27 m2 / 541.1 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 10 kW @ 11m/s / 24.6 mph
Maximum Output Power 11 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 240 Vdc
System Output Voltage 110/220/380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 200 r/min
Working Wind Speed 3-25 m/s / 6.7-82.5  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 287 kg / 632.7 lbs
Generator Efficiency >0.85
Wind Energy Utilizing Ratio 0.40 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing & Hydraulic Braking
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts



3.Curve

10KW Wind Generator Power Curve

4.Working principle

10KW Wind Generator Grid-Tied System
