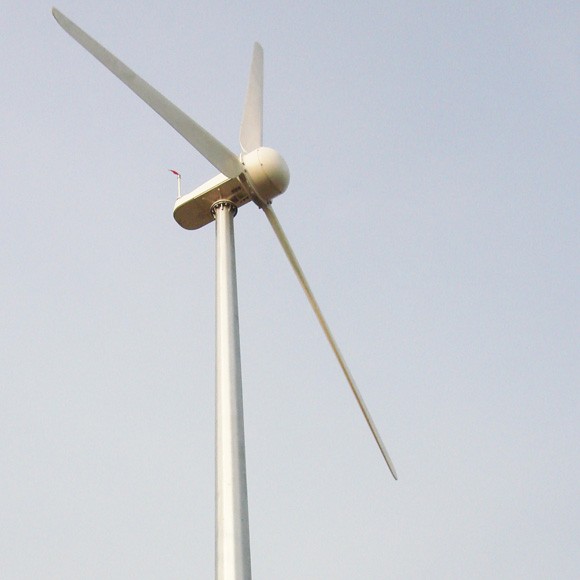

H9.0-20KW Grid Tied Wind Turbine






H9.0-20KW Grid Tied Wind Turbine

H9.0-20KW Grid Tied Wind Turbine

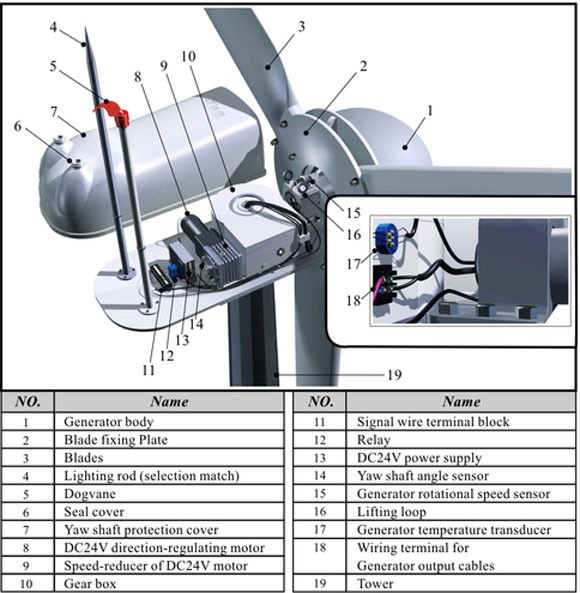

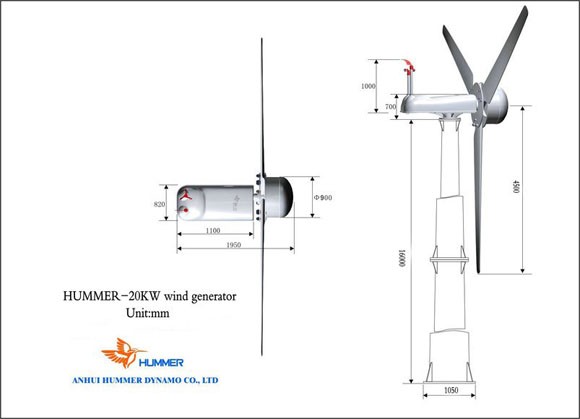

H9.0-20KW Grid Tied Wind Turbine Structure

H9.0-20KW Grid Tied Wind Turbine Structure

H9.0-20KW Grid Tied Wind Turbine Structure

Hummer manufactures and offers advanced H9.0-20KW Grid Tied Wind Turbine specifically

designed for residential houses; farms; telecommunication stations; commercial wind farms;

water-pumping, etc. The electricity from 20kw grid connected wind generator outputs to the

grid-tied inverter after being rectified.when the input DC voltage reaches up to the start-up

voltage,the inverter will merge into state grid. Our products are third party certified

and during the past 10 years, Hummer wind turbine generator have been exported to 91

countries and areas, such as the USA, Canada, Australia, Germany, the UK, Italy, France,

India, Spain etc. For more information on 20KW Wind Turbine such as users manuals, data

sheet, PDF documents, certifications please email us sales@allwindturbine.com

or call 086 551 65314300

H9.0-20KW Grid Tied Wind Turbine curve

H9.0-20KW Grid Tied Wind Turbine curve

H9.0-20KW Grid Tied Wind Turbine Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф9.0 m / 29.5 ft
Swept Area 63.62 m2 / 684.7 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 20 kW @ 11m/s / 24.6 mph
Maximum Output Power 22 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 240 Vdc
System Output Voltage 220/380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 180 r/min
Working Wind Speed 3-25 m/s / 6.7-82.6  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 496 kg / 1093.5 lbs
Generator Efficiency >0.87
Wind Energy Utilizing Ratio 0.40 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing & Hydraulic Braking
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts

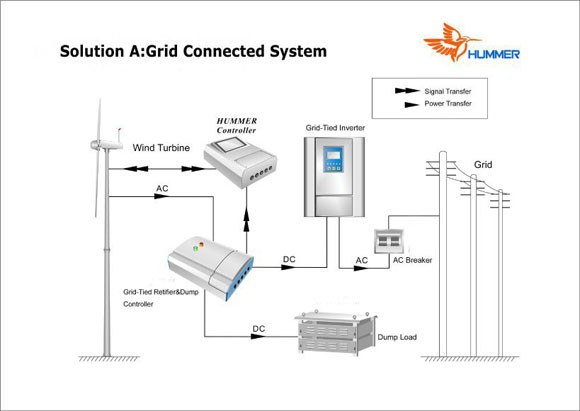

How H9.0-20KW Grid Tied Wind Turbine works

How H9.0-20KW Grid Tied Wind Turbine works
