H9.0-20KW Wind Solar Diesel Hybrid System

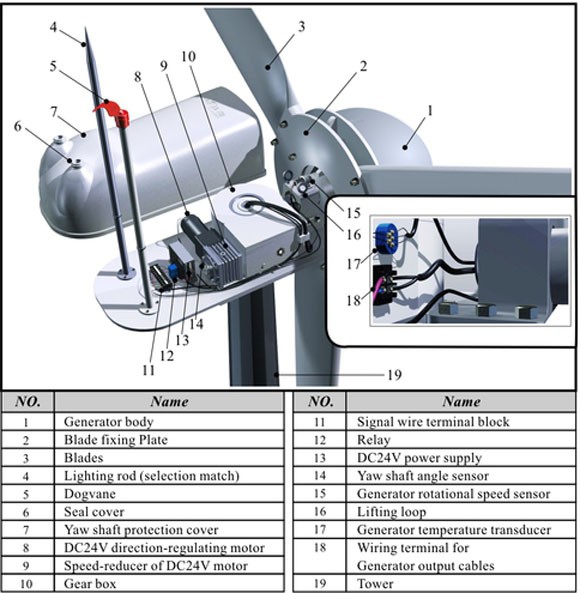

H9.0-20KW Wind Solar Diesel Hybrid System Structure
Hummer manufactures and offers advanced H9.0-20KW Wind Solar Diesel Hybrid System
specifically designed for residential houses; farms; telecommunication stations; commercial
wind farms; water-pumping, etc. The electricity from wind generator and solar panels charges
the batteries after being rectified and powers the loads through the inverter. Diesel generator s
erves as standby when wind and solar energy can meet the power demands. Our products are
third party certified and during the past 10 years, Hummer wind turbine generator have been
exported to 91 countries and areas, such as the USA, Canada, Australia, Germany, the UK, Italy,
France, India, Spain etc. For more information on 20KW Wind Turbine such as users manuals,
data sheet, PDF documents, certifications please email us sales@allwindturbine.com
or call 086 551 65314300
H9.0-20KW Wind Solar Diesel Hybrid System curve

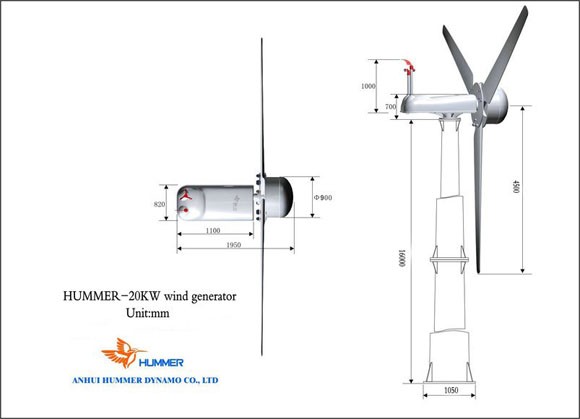

H9.0-20KW Wind Solar Diesel Hybrid System Specifications | |
Configuration | 3 Blades, Horizontal axis, Upwind |
Rotor Diameter | Ф9.0 m / 29.5 ft |
Swept Area | 63.62 m2 / 684.7 ft2 |
Direction of Rotation | Clockwise looking upwind |
Blade Material | Fiberglass reinforced composite |
Rated Power | 20 kW @ 11m/s / 24.6 mph |
Maximum Output Power | 22 kW @ 20m/s / 44.7 mph |
Battery Bank Voltage | 240 Vdc |
System Output Voltage | 220/380 Vac |
Cut-in Wind Speed | 3 m/s / 6.7 mph |
Rated rotating rate | 180 r/min |
Working Wind Speed | 3-25 m/s / 6.7-82.6 mph |
Survival Wind Speed | 50 m/s / 164 mph |
Alternator | Permanent magnet alternator, SCF technology |
Alternator Weight | 496 kg / 1093.5 lbs |
Generator Efficiency | >0.87 |
Wind Energy Utilizing Ratio | 0.40 Cp |
Energy monitoring & User control | Siemens PLC controller with touch screen |
Gearbox | None, Direct drive with front generator design |
Over Speed Regulation | Auto Yawing & Hydraulic Braking |
Shutting Down Method | Manual & Automatic electromagnetism Braking & Hydraulic Braking |
Warranty | 2 years for generator and 1 year for other parts |

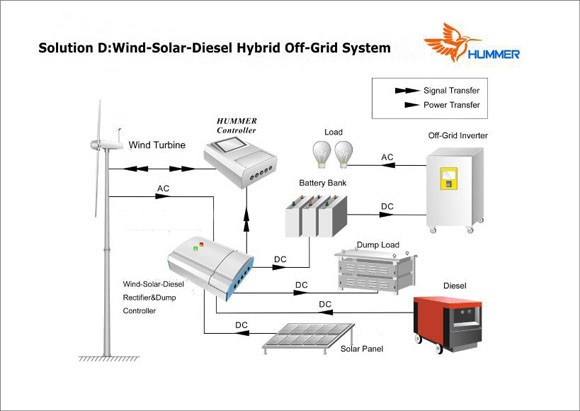

How H9.0-20KW Wind Solar Diesel Hybrid System works
