Home Wind Generator



  • Products Visitors:4037
  • Product Name:Home Wind Generator
  • Model:H4.6-3KW

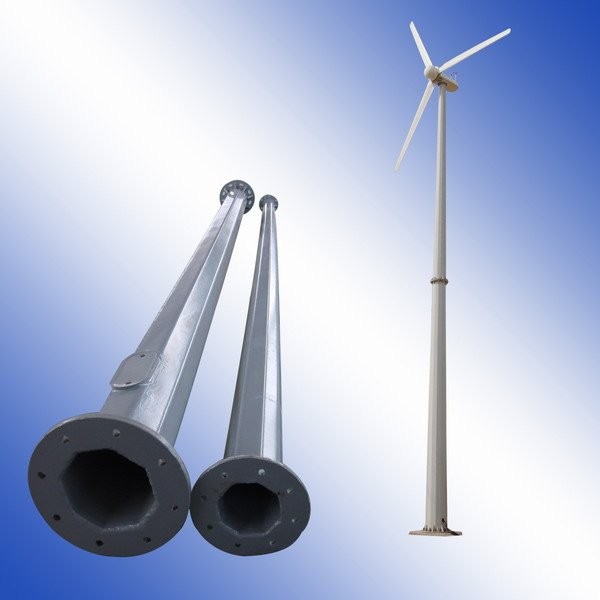

  • Size:12m free standing tower
  • Package:1.338 CBM, 8 Packages



Home Wind Generator Product Description


Home Wind Generator
1.high efficiency
2.CE proved+7patents
3.NO MOQ+wholesale price
4.professional factory



Home Wind Generator

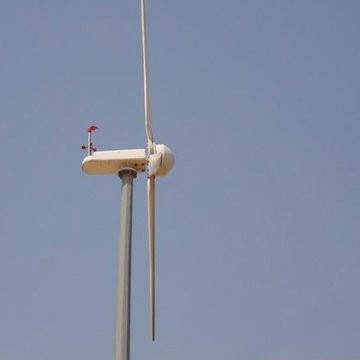

H4.6-3000W is a typical hummer high output Home Wind Generator,

it has the following great features :

small in size but high in output , due to the small&light desgin , 3000w small wind generator

can be installed inside the nose cone , it is very helpful for heat dissipation and reduce the

resistance of wind .

This feature can ensure high output efficiency , the 3000w small wind generator efficiency  is over 0.8.



And to ensure longer lifespan and better performance, the bearing which we are adopting is SKF

imported bearing, and the wind generator control system is Siemens PLC controller module.

light in weight,reliable running .The weight for 3000w small  wind generator

just 60kg , but it with realibe protection ,can ensure the whole system relaible running .



easy to install ,suitable for normal perople to install



freely maintenances ,all system are automatically operation .



Though wiith the above great features, the generator is sold in a very competitive price



Main technical data of Hummer H4.6-3000w Home Wind Generator:

H4.6-3KW Home Wind Generator Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф4.9 m / 16.1 ft
Swept Area 18.86 m2 / 203.0 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 3 kW @ 10m/s / 22.4 mph
Maximum Output Power 3.3 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 180 Vdc
System Output Voltage 110/220 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 265 r/min
Working Wind Speed 3-25 m/s / 6.7-82.3  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 72 kg / 158.7 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.40 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts
