Front Generator Wind Turbine

Home Wind Generator

Home Wind Generator Information

HUMMER-wind generator vertical is directly driven by rotor blades without any other speedup equipment.The patented  5kw magnet generator and super legerity settles in the cone which is in front of the rotor blades and is helpful to radiate heat.

wind generator vertical 5kw power power plant have the great features of high power efficiency; low energy  comsumption by the wind turbine generator itself;

low startup wind speed with the patented technology;long life design with easily installation and maintenance.

 2.Technology data of Home Wind Generator

H6.4-5KW Home Wind Generator Specifications
Configuration	3 Blades, Horizontal axis, Upwind
Rotor Diameter	Ф6.4 m / 20.1 ft
Swept Area	32.17 m2 / 346.3 ft2
Direction of Rotation	Clockwise looking upwind
Blade Material	Fiberglass reinforced composite
Rated Power	5 kW @ 12m/s / 26.8 mph
Maximum Output Power	5.6 kW @ 20m/s / 44.7 mph
Battery Bank Voltage	240 Vdc
System Output Voltage	110/220/380 Vac
Cut-in Wind Speed	3 m/s / 6.7 mph
Rated rotating rate	240 r/min
Working Wind Speed	3-25 m/s / 6.7-82.4  mph
Survival Wind Speed	50 m/s / 164 mph
Alternator	Permanent magnet alternator, SCF technology
Alternator Weight	147 kg / 324.1 lbs
Generator Efficiency	>0.80
Wind Energy Utilizing Ratio	0.40 Cp
Energy monitoring & User control	Siemens PLC controller with touch screen
Gearbox	None, Direct drive with front generator design
Over Speed Regulation	Auto Yawing
Shutting Down Method	Manual & Automatic electromagnetism Braking
Warranty	2 years for generator and 1 year for other parts



3. wind generator Home Wind Generator curve



4.Structural Picture of wind generator

5.  wind power Control System

6.Solutions of 5kw wind power generator

7.Site Choosing of free energy generator

8.Tower Options

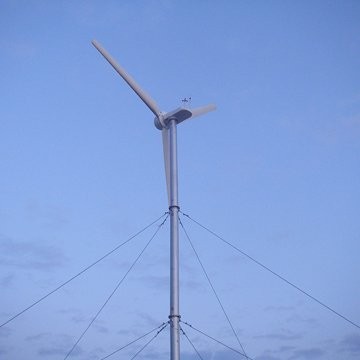

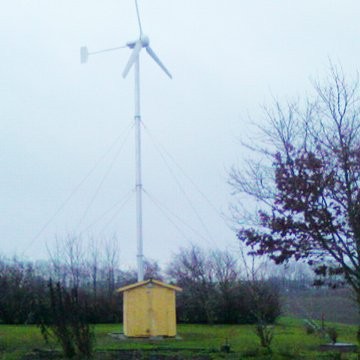

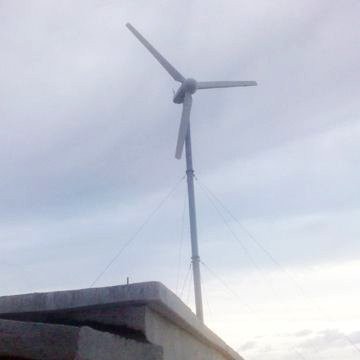

(1)Guyed Tower                                    (2)Free Standing Tower                          (3)Hydraulic Tower

9.FAQ:

1.What's the delivery time ?

15 working days after your deposite

2.What's the warranty and service?

Five years for generator system and 2 years for other parts

3.How long are we specialized in wind turbine industry?

From 1993 till now. Expert enterprise and a well-known professional manufacturer

4.What's the unique feature about Hummer?

small, light, high efficiency, low noise with SCF generator technology

smart control system with touch screen

high wind protection

All above features with 7 patents, ranging from 500w to 100kw medium and small-sized wind turbines

5.Quality?

Strict factory inspction, SCF generator and inverter certified by CE ,UL,ETL, exported to more than 90 counties.

6.Application?

House, on-grid and off-grid, wind power plants, wind farms projects, TV transfer staions, telecommunication stations, water-pumping stations etc.

10.Certifications
