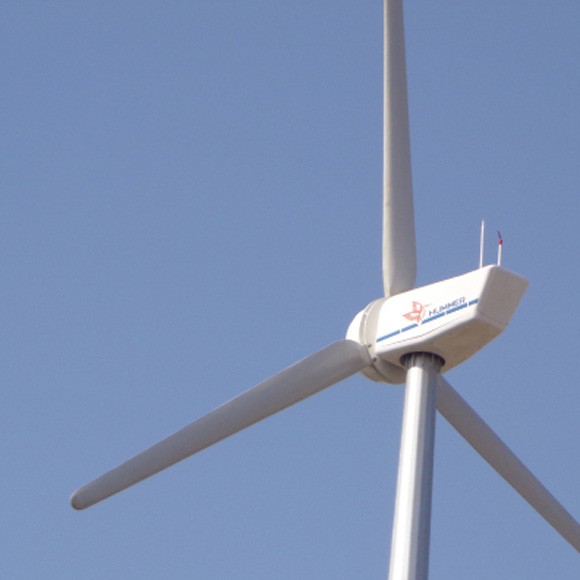

Hummer 100KW Horizontal Wind Generator






Hummer 100KW Horizontal Wind Generator

Hummer 100KW Horizontal Wind Generator

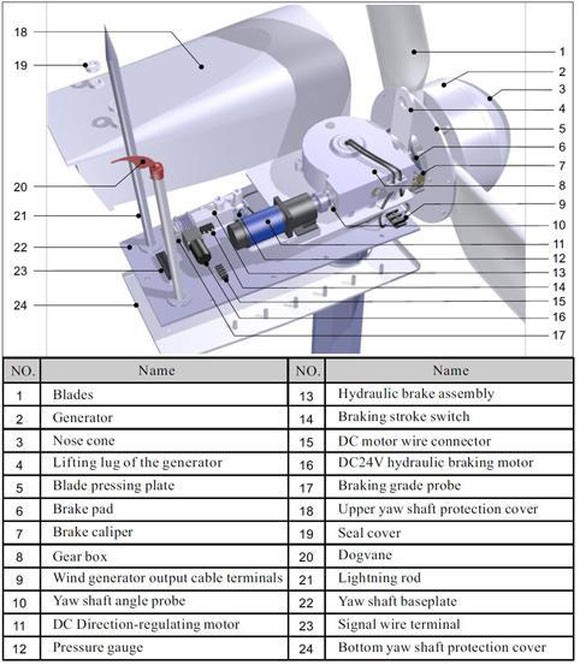

100KW Horizontal Wind Generator Structure

100KW Horizontal Wind Generator Structure

Hummer manufactures and offers advanced 100KW Horizontal Wind Generator which

adopting generator prepositive design without gears specifically designed for residential

houses; farms; telecommunication stations; commercial wind farms; water-pumping, etc.

Also with higher Wind energy utilizing ratio. SCF supercritical geenrator technology with

NSK bearings ensure a long running life. Our products are third party certified and during

the past 10 years, Hummer wind generator have been exported to 91 countries and

areas, such as the USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain etc.

For more information on 100KW Horizontal Wind Generator such as users manuals, data

sheet, PDF documents, certifications please email us sales@allwindturbine.com

or call 086 551 65314300

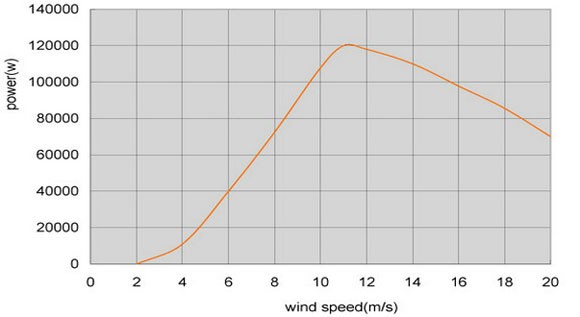

100KW Horizontal Wind Generator curve Hummer 100KW Horizontal Wind Generator

H20.8-100KW Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф20.8 m / 68.2 ft
Swept Area 339.80 m2 / 3657.6 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 100 kW @ 12m/s / 26.8 mph
Maximum Output Power 106 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 460 Vdc
System Output Voltage 380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 100 r/min
Working Wind Speed 3-25 m/s / 6.7-82.10  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 2196 kg / 4620.9 lbs
Generator Efficiency >0.92
Wind Energy Utilizing Ratio 0.45 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing & Hydraulic Braking
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts


How 100KW Horizontal Wind Generator works

How 100KW Horizontal Wind Generator works
