Hummer 100KW Wind Turbine Cost






Hummer 100KW Wind Turbine Cost

Hummer 100KW Wind Turbine Cost

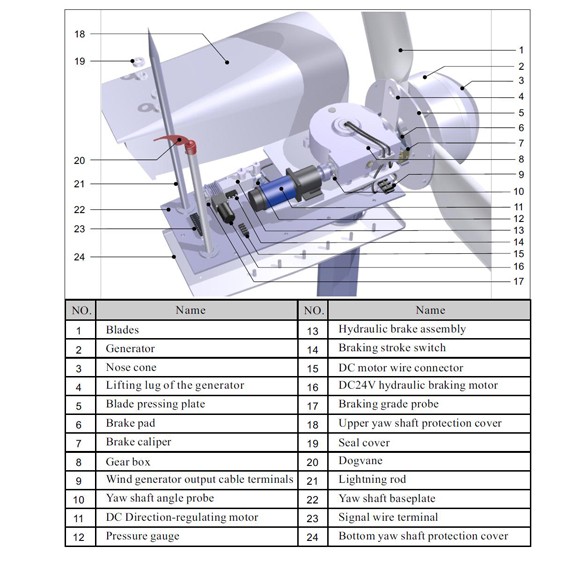

100KW Wind Turbine Structure

100KW Wind Turbine Structure

Hummer manufactures and offers advanced 100KW Wind Turbine which adopting

generator prepositive design without gears specifically designed for residential houses;

farms; telecommunication stations; commercial wind farms; water-pumping, etc. Also with

higher Wind energy utilizing ratio. SCF supercritical geenrator technology with NSK bearings

ensure a long running life. Our products are third party certified and during the past 10

years, Hummer Home Wind Energy have been exported to 91 countries and areas,

such as the USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain etc.

For more information on 100KW Home Wind Power such as users manuals, data

sheet, PDF documents, certifications please email us sales@allwindturbine.com

or call 086 551 65314300

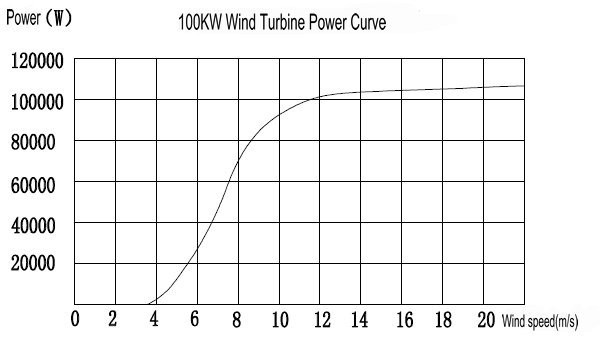

100KW Wind Turbine curve

100KW Wind Turbine curve

H20.8-100KW Wind Turbine Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф20.8 m / 68.2 ft
Swept Area 339.80 m2 / 3657.6 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 100 kW @ 12m/s / 26.8 mph
Maximum Output Power 106 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 460 Vdc
System Output Voltage 380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 100 r/min
Working Wind Speed 3-25 m/s / 6.7-82.10  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 2196 kg / 4620.9 lbs
Generator Efficiency >0.92
Wind Energy Utilizing Ratio 0.45 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing & Hydraulic Braking
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts



How 100KW Wind Turbine works

How 100KW Wind Turbine works
