Hummer 10KW Home Wind Energy



  • Products Visitors:2392
  • Product Name:Hummer 10KW Home Wind Energy
  • Package:8.595 CBM, 8 Packages
  • Size:18m free standing tower
  • Model:H8.0-10KW

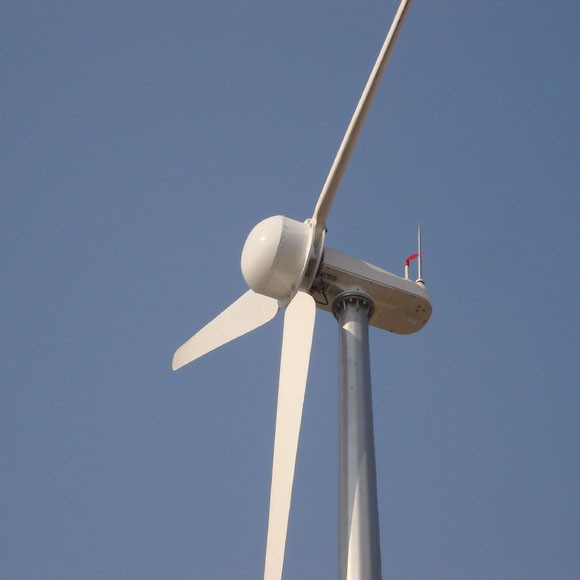

Hummer 10KW Home Wind Energy

Hummer 10KW Home Wind Energy

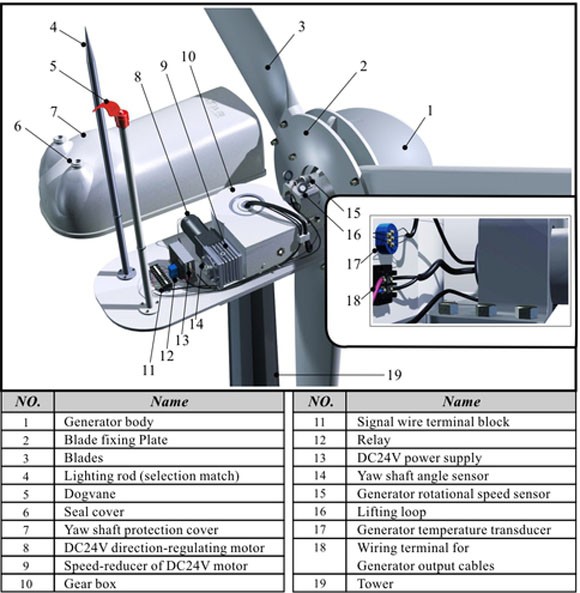

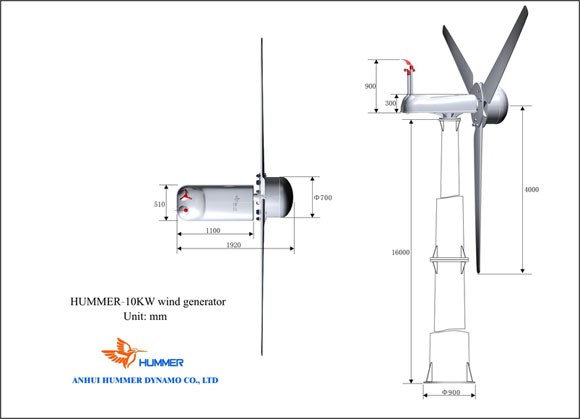

10KW Home Wind Energy Structure

10KW Home Wind Energy Structure

10KW Home Wind Energy Structure

Hummer manufactures and offers advanced 10KW Home Wind Energy specifically designed

for residential houses; farms; telecommunication stations; commercial wind farms; water-pumping,

etc. Our products are third party certified and during the past 10 years, Hummer 10KW Home

Wind Energy have been exported to 91 countries and areas, such as the USA, Canada,

Australia, Germany, the UK, Italy, France, India, Spain etc. For more information on 10KW

Home Wind Energy such as users manuals, data sheet, PDF documents, certifications

please email us sales@allwindturbine.com or call 086 551 65314300

10KW Home Wind Energy curve

10KW Home Wind Energy curve



H8.0-10KW Home Wind Energy Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф8.0 m / 26.2 ft
Swept Area 50.27 m2 / 541.1 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 10 kW @ 11m/s / 24.6 mph
Maximum Output Power 11 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 240 Vdc
System Output Voltage 110/220/380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 200 r/min
Working Wind Speed 3-25 m/s / 6.7-82.5  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 287 kg / 632.7 lbs
Generator Efficiency >0.85
Wind Energy Utilizing Ratio 0.40 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing & Hydraulic Braking
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts



How 10KW Home Wind Energy works

How 10KW Home Wind Energy works
