Hummer 10KW Residential Wind Generator






Hummer 10KW Residential Wind Generator

Hummer 10KW Residential Wind Generator

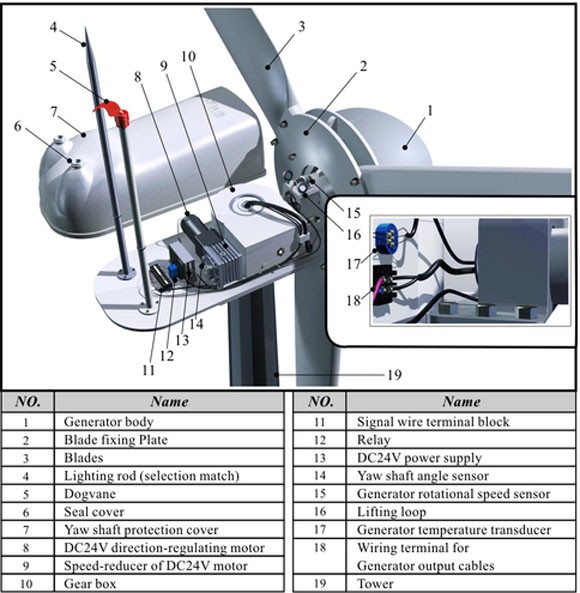

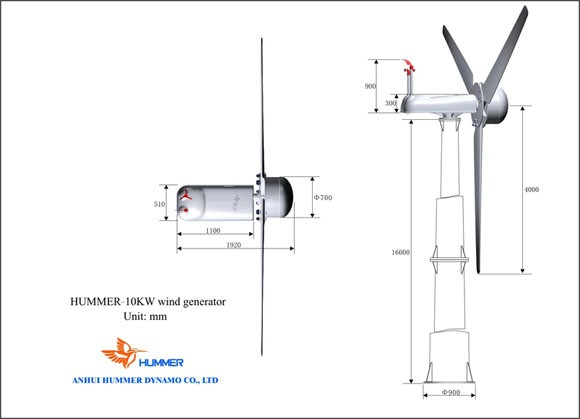

10KW Residential Wind Generator Structure

10KW Residential Wind Generator Structure

10KW Residential Wind Generator Structure

Hummer manufactures and offers advanced 10KW Residential Wind Generator specifically

designed for residential  houses; farms; telecommunication stations; commercial wind farms;

 water-pumping, etc. Our products are third party certified and during the past 10 years,

 Hummer 10KW Residential Wind Generator have been exported to 91 countries and areas,

 such as the USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain

 etc. For more information on 10KW Residential Wind Generator such as users manuals,

data sheet, PDF documents, certifications please email us sales@allwindturbine.com

or call 086 551 65314300

10KW Residential Wind Generator curve

Hummer 10KW Residential Wind Generator


H8.0-10KW Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф8.0 m / 26.2 ft
Swept Area 50.27 m2 / 541.1 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 10 kW @ 11m/s / 24.6 mph
Maximum Output Power 11 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 240 Vdc
System Output Voltage 110/220/380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 200 r/min
Working Wind Speed 3-25 m/s / 6.7-82.5  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 287 kg / 632.7 lbs
Generator Efficiency >0.85
Wind Energy Utilizing Ratio 0.40 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing & Hydraulic Braking
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts

How 10KW Residential Wind Generator works

How 10KW Residential Wind Generator works
