Hummer 10KW Wind Energy System



  • Products Visitors:1822
  • Product Name:Hummer 10KW Wind Energy System
  • Package:8.595 CBM, 8 Packages
  • Size:8m wind blades, 12m guyed tower
  • Model:H8.0-10KW

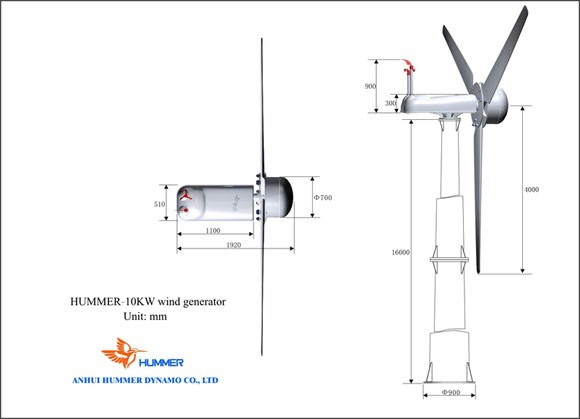

Hummer 10KW Wind Energy System

Hummer 10KW Wind Energy System

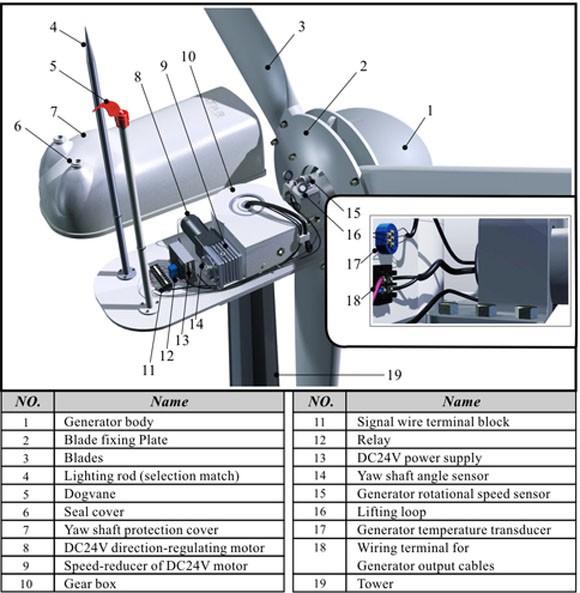

10KW Wind Energy System Structure

10KW Wind Energy System Structure

10KW Wind Energy System Structure

Hummer manufactures and offers advanced 10KW Wind Energy System specifically designed

for residential houses; farms; telecommunication stations; commercial wind farms; water-pumping,

etc. Our products are third party certified and during the past 10 years, Hummer 10KW Wind

Energy System have been exported to 91 countries and areas, such as the USA, Canada,

Australia, Germany, the UK, Italy, France, India, Spain etc. For more information on 10KW

Wind Energy System such as users manuals, data sheet, PDF documents, certifications please

email us sales@allwindturbine.com or call 086 551 65314300

10KW Wind Energy System curve

10KW Wind Energy System curve

H8.0-10KW Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф8.0 m / 26.2 ft
Swept Area 50.27 m2 / 541.1 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 10 kW @ 11m/s / 24.6 mph
Maximum Output Power 11 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 240 Vdc
System Output Voltage 110/220/380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 200 r/min
Working Wind Speed 3-25 m/s / 6.7-82.5  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 287 kg / 632.7 lbs
Generator Efficiency >0.85
Wind Energy Utilizing Ratio 0.40 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing & Hydraulic Braking
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts


How 10KW Wind Energy System works

How 10KW Wind Energy System works
