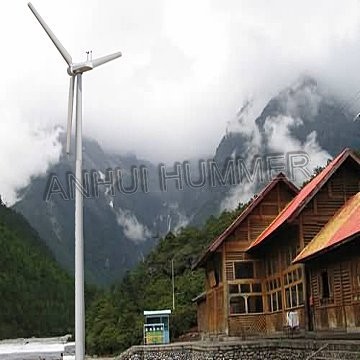

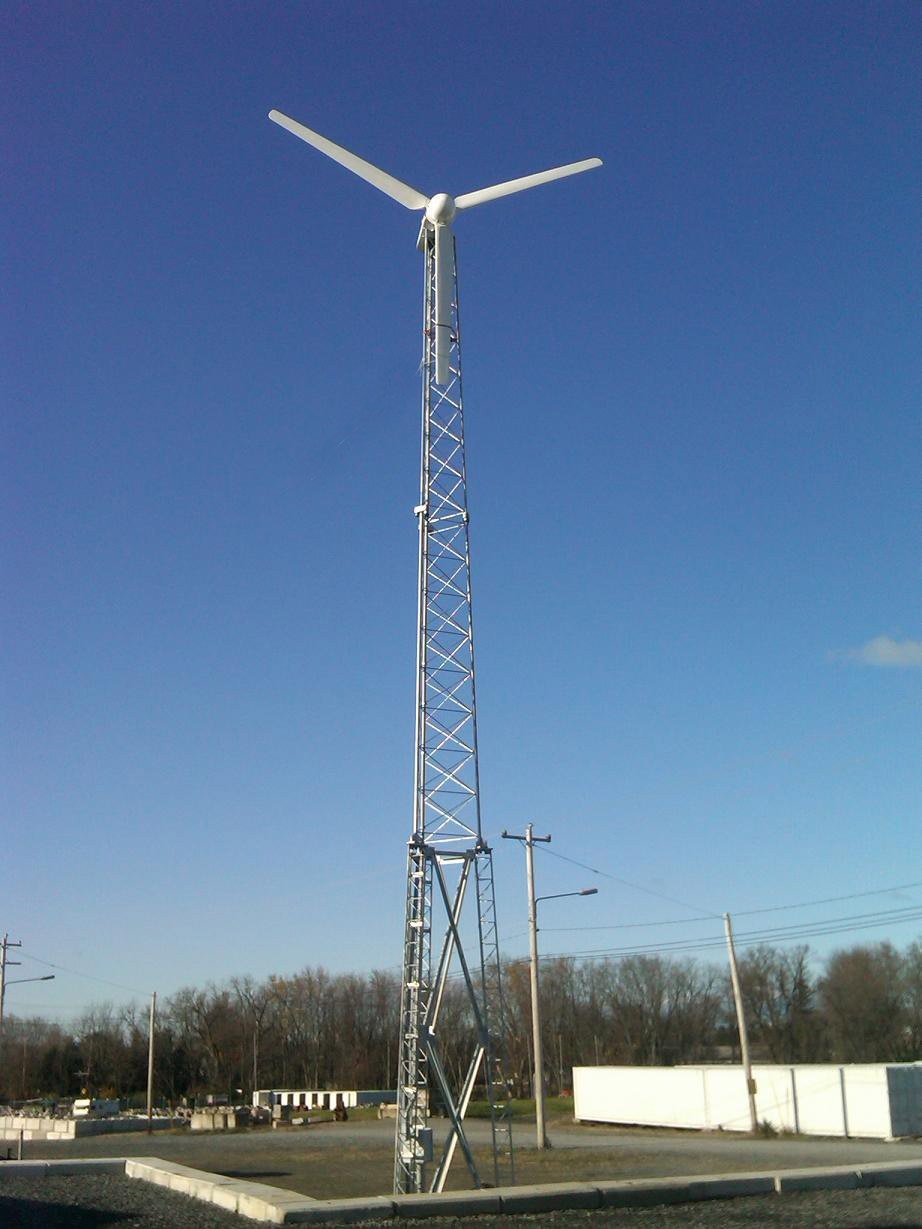

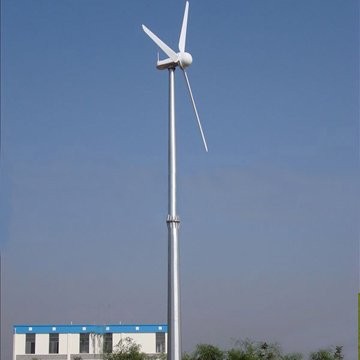

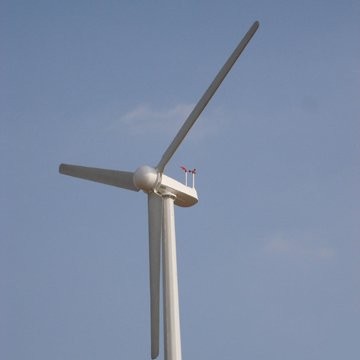

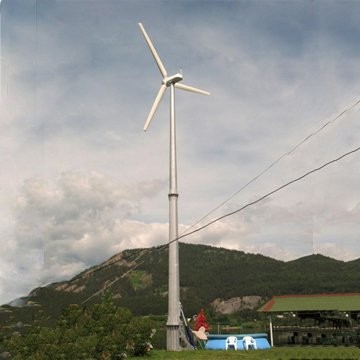

Hummer 10kw small wind turbine






Detailed Product Description


small wind turbine
1.CE proved+7patents
2.high efficiency+small size
3.NO MOQ+wholesale price
4.professional factory

10kw, USA5


small wind  turbine

Application of Model H8.0-10000W small wind turbine:

It can drive air-condition (8-10 horsepower), 3kw water pump or other resistive appliances (≤10KW)

Well used in:

 Housing and factory and farm
 Telecommunication Station
 TV Transfer Station
 Monitoring Station (military, hydrology, observatory)
 Water-pumping Station
 shipping


Rated power(W)

10000

Maximum output power(W)

15000

Charging voltage (V)

DC 240

Blade quantity

3

Rotor blade material

GRP

Rotor blade diameter(m)

8.0

Start-up wind speed (m/s)

3.0

Rated wind speed (m/s)

10.0

Rated rotating rate (r/min)

200

Wind energy utilizing ratio (Cp)

0.4

Generator output

Single-phase

frequency conversion AC

Rated charging current (A)

41.7

The maximum charging current (in a short time )(A)

65

Output AC frequency (Hz)

0~280

Generator efficiency

>0.8

Free standing tower diameter(mm)

900*630*15000 (2pcs)

Guy tower diameter(mm)

1050*750 *16000(2pcs)

Tower height(m)

15

The weight of generator(kg)

287

Battery 12V 600Ah/800Ah

20pcs
