Hummer 1KW Roof Wind Turbine



  • Products Visitors:2621
  • Product Name:Hummer 1KW Roof Wind Turbine
  • Package:0.516 CBM, 4 Packages
  • Size:3.1m wind blades, 8m guyed tower
  • Model:H3.1-1KW

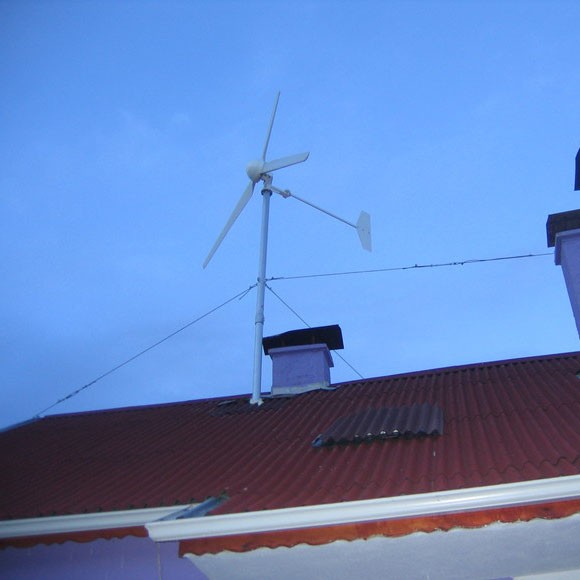

Hummer 1KW Roof Wind Turbine

Hummer 1KW Roof Wind Turbine

1KW Roof Wind Turbine Structure

1KW Roof Wind Turbine Structure

1KW Roof Wind Turbine Structure

Hummer manufactures and offers advanced 1KW Roof Wind Turbine specifically designed

for residential houses; farms; telecommunication stations; commercial wind farms; water-pumping,

etc. Our products are third party certified and during the past 10 years, Hummer 1KW Roof Wind

Turbine have been exported to 91 countries and areas, such as the USA, Canada, Australia,

Germany, the UK, Italy, France, India, Spain etc. For more information on Hummer 1KW Roof

Wind Turbine such as users manuals, data sheet, PDFdocuments, certifications please

email us sales@allwindturbine.com or call 086 551 65314300

Hummer 1KW Roof Wind Turbine curve

Hummer 1KW Roof Wind Turbine curve

H3.1-1000W Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф3.1 m / 10.2 ft
Swept Area 7.55 m2 / 81.3 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 1 kW @ 10m/s / 22.4 mph
Maximum Output Power 1.2 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 60 Vdc
System Output Voltage 110/220 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 500 r/min
Working Wind Speed 3-25 m/s / 6.7-82.1  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 15 kg / 33.1 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.45 Cp
Energy monitoring & User control LED display
Gearbox None, Direct drive with front generator design
Over Speed Regulation Passive furling tail design
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts



How 1KW Roof Wind Turbine works

How 1KW Roof Wind Turbine works
