Hummer 1KW Wind Turbine



  • Products Visitors:10177
  • Product Name:Hummer 1KW Wind Turbine
  • Package:0.516CBM 4Packages
  • Size:3.1m wind blades,8m guyed tower
  • Model:H3.1-1KW

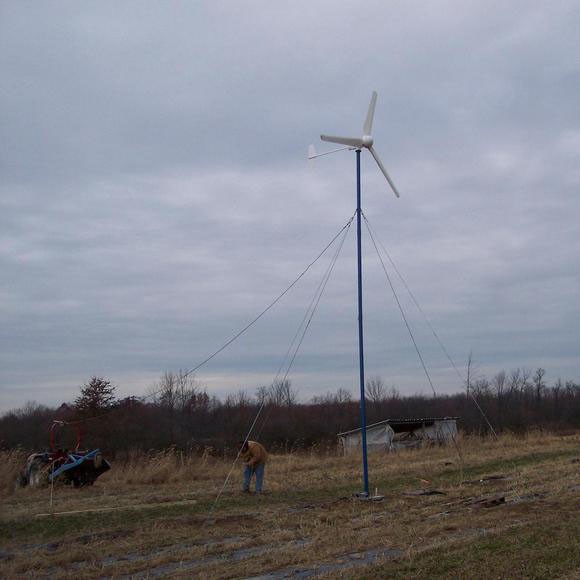

Hummer 1KW Wind Turbine in America

Hummer 1KW Wind Turbine in America

1KW Wind Turbine Structure

1KW Wind Turbine Structure

1KW Wind Turbine Structure

Hummer manufactures and offers advanced 1KW Wind Turbine specifically designed for

residential houses; farms; telecommunication stations; commercial wind farms; water-pumping, etc.

Our products are third party certified and during the past 10 years, Hummer 1KW Wind Turbine

 have been exported to 91 countries and areas, such as the USA, Canada, Australia, Germany, the

 UK, Italy, France, India, Spain etc. For more information on Hummer 1KW Wind Turbine such as

users manuals, data sheet, PDF documents, certifications please

email us sales@scfwindturbine.com or call 086 551 65314300

Hummer 1KW Wind Turbine curve

Hummer 1KW Wind Turbine curve


H3.1-1000W Wind Turbine in America Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф3.1 m / 10.2 ft
Swept Area 7.55 m2 / 81.3 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 1 kW @ 10m/s / 22.4 mph
Maximum Output Power 1.2 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 60 Vdc
System Output Voltage 110/220 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 500 r/min
Working Wind Speed 3-25 m/s / 6.7-82.1  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 15 kg / 33.1 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.45 Cp
Energy monitoring & User control LED display
Gearbox None, Direct drive with front generator design
Over Speed Regulation Passive furling tail design
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts

How 1KW Off Grid Wind Turbine works


How 1KW Off Grid Wind Turbine works
